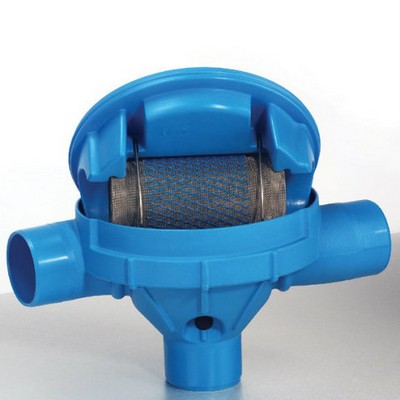

Rainwater filter for installation within rainwater tanks. Ideal for retro-fitting in existing tanks, because the 3P Sinus Filter has no height difference between rainwater inlet and outlet to the waste water sewer. The filter cartridge lies diagonally (offset) in the housing, promoting a sinusoidal flow pattern increasing the available surface area of the filter mesh and achieving high efficiency, therefore even more water can be saved in comparison to conventional “straight through” filters.

Optional 3P Back-washing Device. The 3P Sinus Filter is ideally suited for use in conjunction with a 3P Overflow Siphon and the 3P Calmed Inlet.

Low maintenance, self cleaning, cleaning frequency depends upon the solid loading the rainwater.

Connection capacity for roof areas up to 200 m².

All connections DN 100 (110mm OD)

Height difference of 0 mm (zero) between rainwater inlet and waste water outlet.

Mesh size of filter cartridge 0.7 x 1.7 mm.

The cleaned water can be used in washing machines, toilet flushing and garden watering, in homes, in commerce, in public buildings and in industry.
