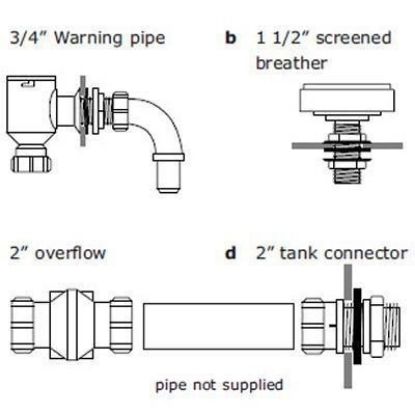

By-Law Kit
A byelaw kit should be installed as per the water regulations to allow for a type A-B air gap within the tank, this is designed to prevent the water within the tank every reaching the inlet and causing cross contamination with the water supply. this is especially important when the tank is being supplied with mains water and used a booster set.
The kit will include a warning pipe and overflow pipe to prevent the tank from overfilling. A screened breather for the tank to allow circulation of air.
|
By-Law 30 Tank Kit (Eng & Wales) for up to 1'' Inlet. STOCK CODE: BYLAW-025 |

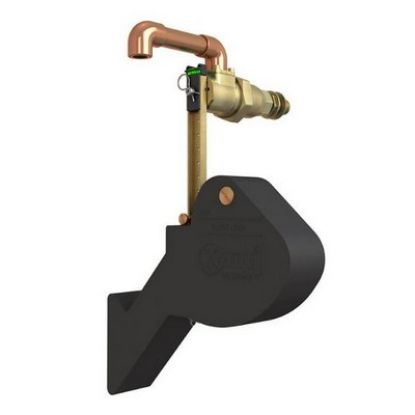

Keraflo Type A Float Valve
The Keraflo K Type Aylesbury Valve is an equilibrium float valve with DZR brass body, having a fixed delayed action and adjustable close level. The up and over discharge conforms in principle to BS.1212 Part 2. The valve features a non-wearing maintenance-free ceramic disc seal for water pressure up to 10 Bar.
For standard water cisterns without a raised chamber.
|
¾" BSP Keraflo Type K float valve STOCK CODE: FLOATAK020 Supplier SKU: A/K20 |
||
|
1" BSP Keraflo Type K float valve STOCK CODE: FLOATAK025 Supplier SKU: A/K25 |
||
|
1¼" BSP Keraflo Type K float valve STOCK CODE: FLOATAK032 Supplier SKU: A/K32 |
||
|
1½" BSP Keraflo Type K float valve - high flow STOCK CODE: FLOATAK040HF Supplier SKU: A/K40HF |
||
|
2" BSP Keraflo Type K float valve - standard flow STOCK CODE: FLOATAK050 Supplier SKU: A/K50SF |
||
|
2" BSP Keraflo Type K float valve - high flow STOCK CODE: FLOATAK050HF Supplier SKU: A/K50HF |

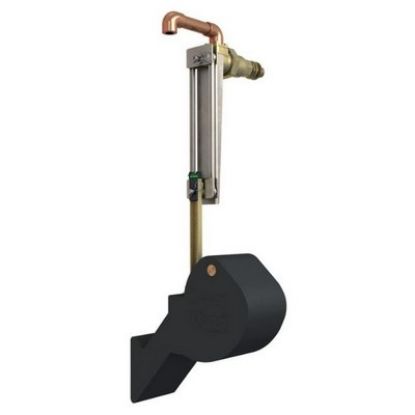

Keraflo Type KAX Float Valve
The Keraflo KAX Type Aylesbury Valve is an equilibrium float valve with DZR brass body, having a fixed delayed action and adjustable close level. The up and over discharge conforms in principle to BS.1212 Part 2. The valve features a non-wearing maintenance-free ceramic disc seal for water pressure up to 10 Bar.
For standard water cisterns with a raised chamber.
|
¾" BSP Keraflo Type KAX float valve for raised chambers STOCK CODE: FLOATAKAX020 Supplier SKU: A/KAX20 |
||
|
1" BSP Keraflo Type KAX float valve for raised chambers STOCK CODE: FLOATAKAX025 Supplier SKU: A/KAX25 |
||
|
1¼" BSP Keraflo Type KAX float valve for raised chambers STOCK CODE: FLOATAKAX032 Supplier SKU: A/KAX32 |
||
|
1½" BSP Keraflo Type KAX float valve for raised chambers - high flow STOCK CODE: FLOATAKAX040HF Supplier SKU: A/KAX40HF |
||
|
2" BSP Keraflo Type KAX float valve for raised chambers STOCK CODE: FLOATAKAX050 Supplier SKU: A/KAX50SF |
||
|
2" BSP Keraflo Type KAX float valve for raised chambers - high flow STOCK CODE: FLOATAKAX050HF Supplier SKU: A/KAX50HF |

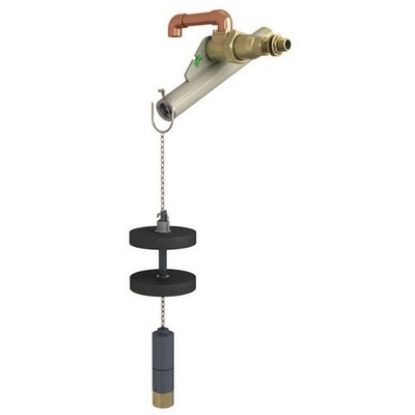

Keraflo Type KB Float Valve
The Keraflo KB Type Aylesbury Valve is an equilibrium float valve with DZR brass body, having a fully variable delayed action. The up and over discharge conforms in principle to BS.1212 Part 2. The valve features a non-wearing maintenance-free ceramic disc seal for water pressure up to 10 Bar.
For standard water cisterns with or without a raised chamber.
|
¾" BSP Keraflo Type KB float valve with fully variable delayed action STOCK CODE: FLOATAKB020 Supplier SKU: A/KB20 |
||
|
1" BSP Keraflo Type KB float valve with fully variable delayed action STOCK CODE: FLOATAKB025 Supplier SKU: A/KB25 |
||
|
1¼" BSP Keraflo Type KB float valve with fully variable delayed action STOCK CODE: FLOATAKB032 Supplier SKU: A/KB32 |
||
|
1½" BSP Keraflo Type KB float valve with fully variable delayed action STOCK CODE: FLOATAKB040 Supplier SKU: A/KB40SF |
||
|
1½" BSP Keraflo Type KB float valve with fully variable delayed action-HighFlow STOCK CODE: FLOATAKB040HF Supplier SKU: A/KB40HF |
||
|
2" BSP Keraflo Type KB float valve with fully variable delayed action STOCK CODE: FLOATAKB050 Supplier SKU: A/KB50SF |
||
|
2" BSP Keraflo Type KB float valve with fully variable delayed action -High Flow STOCK CODE: FLOATAKB050HF Supplier SKU: A/KB50HF |

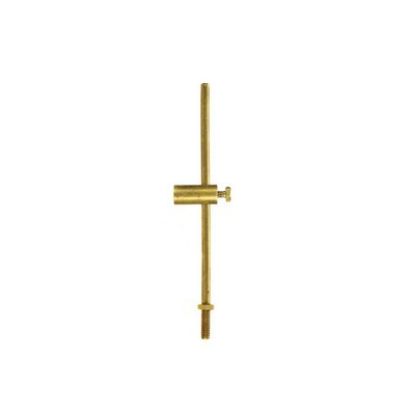

Ball Valve Drop Arms
Replacement drop arms for high pressure ball valves.
|
Brass Drop Arm with slider. 18" x 5/16" (suitable for most ½" and ¾" valves) STOCK CODE: FLOATDRP18-A516 |
||
|
Brass Drop Arm with slider. 18" x 3/8" (suitable for some 1" valves) STOCK CODE: FLOATDRP18-B038 |
||
|
Brass Drop Arm with slider. 18" x 7/16" (suitable for some 1" valves) STOCK CODE: FLOATDRP18-B716 |
||
|
Brass Drop Arm with slider. 21" x 9/16" (Suitable for 1½" Ball Valve) STOCK CODE: FLOATDRP21-C916 |

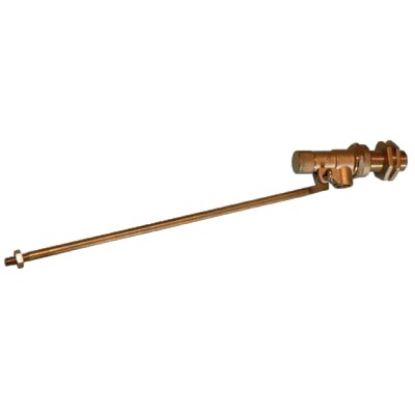

Equilibrium Ball Valve
Equilibrium float valves are designed to minimise the effect of changing water pressures, therefore being especially suited to pumped water systems.
Smoothly controlled closure ensures a fast, quiet shut off.
Line pressure assists closing thus reducing the length of lever required.
It is recommended to use copper floats where possible.
|
½" BSP Equilibrium Type Float Valve STOCK CODE: FLOATEQ015 |
||
|
¾" BSP Equilibrium Type Float Valve STOCK CODE: FLOATEQ020 |
||
|
1" BSP Equilibrium type Float Valve STOCK CODE: FLOATEQ025 |

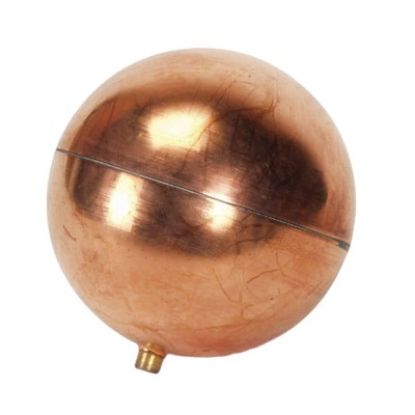

Copper Ball Valve Floats
Copper ball valve floats are recommended for use with equilibrium type float valves.
|
5/16" W x 4½" Ø Float Valve copper ball STOCK CODE: FLOATEQCU01 |
||
|
7/16"W x 6" Ø Float Valve copper ball for 1" Equilibrium ball valves. STOCK CODE: FLOATEQCU02 |
||
|
7/16"W x 8" Ø Float Valve copper ball STOCK CODE: FLOATEQCU03 |

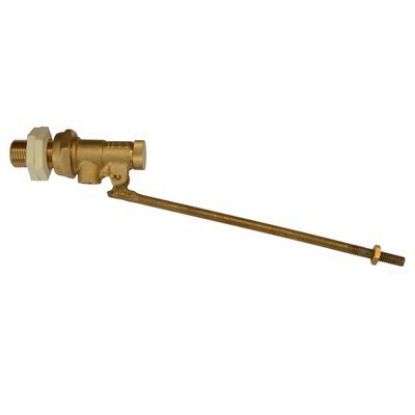

High pressure Ball Valve
High pressure ball valves are used to refill water storage tanks. The arm on the valve, combined with a float means the water level should never reach the inlet. All high pressure ball valves are constructed to BS1212 Part 1 or 2.
Part 2 valves are generally quieter in operation and offer better protection against backflow.
Please note that high pressure ball valves are not supplied with floats. These need to be purchased separately.
All ball valves should be installed to WRAS specifications and a sufficient overflow should also be provided on mains water supplied systems. Further information can be found on the WRAS website.
|
½" BSP high pressure Float Valve to BS1212 Part 1 with 5/16" Arm. STOCK CODE: FLOATHP015 |
||
|
½" BSP high pressure Float Valve to BS1212 Part 2 (Drop Arm) STOCK CODE: FLOATHP015-PT2 |
||
|
¾" BSP high pressure Float Valve to BS1212 Part 1 with 5/16" Arm. STOCK CODE: FLOATHP020 |
||
|
¾" BSP high pressure Float Valve to BS1212 Part 2 (Drop Arm) STOCK CODE: FLOATHP020-PT2 |
||
|
1" BSP high pressure Float Valve to BS1212 Part 1 with 7/16" Arm. STOCK CODE: FLOATHP025 |
||
|
1¼" BSP high pressure Float Valve to BS1212 Part 1 STOCK CODE: FLOATHP032 |
||
|
1½" BSP high pressure Float Valve to BS1212 Part 1 STOCK CODE: FLOATHP040 |

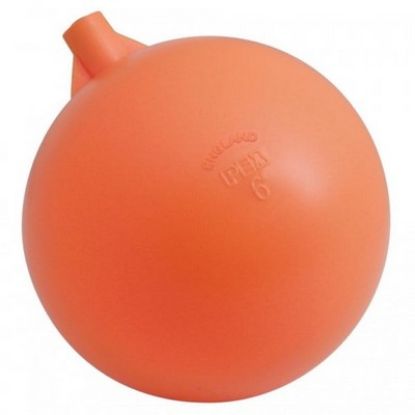

Plastic Ball Valve Float
Plastic ball valve floats are used in combination with high or low pressure ball valves to refill water storage tanks. The drop arm on the valve, combined with a float means the water level should never reach the inlet. All high pressure ball valves are constructed to BS1212 Part 1.
Please note that ball valve floats are not supplied with the valves, these need to be purchased separately.
All ball valves should be installed to WRAS specifications and a sufficient overflow should also be provided on mains water supplied systems. Further information can be found on the WRAS website.
|
5/16" W x 4½" Ø Float Valve plastic ball for ½" Valves STOCK CODE: FLOATPL01 |
||
|
5/16" W x 6" Ø Float Valve plastic ball for ¾" Valves STOCK CODE: FLOATPL02 |
||
|
7/16" W x 8" Ø Float Valve plastic ball for 1" Valves STOCK CODE: FLOATPL03 |
||
|
9/16"W x 10" Ø Float Valve plastic ball for 1¼ & 1½" Valves STOCK CODE: FLOATPL04 |

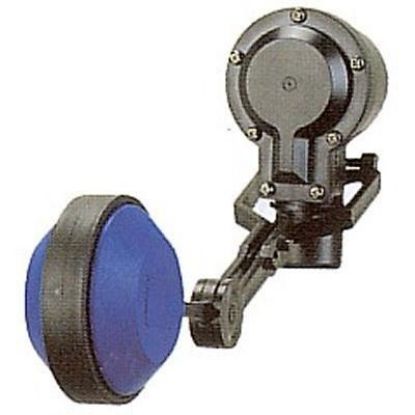

Quick Stop Plastic Ball Valves
The Quickstop flow regulators offer an alternative to the high pressure ball valves, with it's instant on or off they are an ideal alternative when you have a pumped supply to the irrigation water storage tank.
Constructed from plastic and UV stabilized, it is pressure rated from 2 - 6 bar. This product is not WRAS approved and should not be used on a mains water system.
|
¾" MAC Quickstop Flow Regulator 0.2 to 6 Bar STOCK CODE: FLOATQUICKSTOP020 |
||
|
1" MAC Quickstop Flow Regulator 0.2 to 6 Bar STOCK CODE: FLOATQUICKSTOP025 |
||
|
1¼" MAC Quickstop Flow Regulator 0.2 to 6 Bar STOCK CODE: FLOATQUICKSTOP032 |

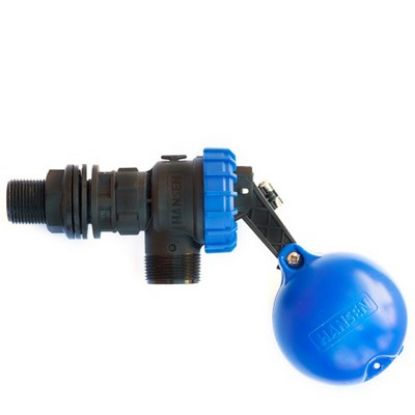

Hansen Maxi-Flo Valve
Hansen Maxiflo diaphragm valves are simple and easy to used top up valve. With high performance at low pressures and dirty water applications they can offer a reliable operation. Designed with multiple thread and connection combinations to increase overall durability and versatility.
The Hansen Maxiflo valves have a self cleaning pilot valve to ensure a reliable operation in dirty water applications. The unique design of the Hansen Maxiflo means it can operate correctly at low pressures from 0.2 to 12 bar pressure. The mini body design allows for easy installation.
Manufactured from glass reinforced nylon and UV stabilized.
|
¾" GRN Maxflo Diaphragm Valve Long Tail STOCK CODE: HANMFDV020 Supplier SKU: HMFDV2520L |
||
|
1" GRN Maxflo Diaphragm Valve Long Tail STOCK CODE: HANMFDV025 Supplier SKU: HMFDV3225L |
||
|
1" GRN Maxflo Diaphragm Short Valve c/w ¾, 1" & 1¼ adaptors (excl. tank con) STOCK CODE: HANMFDV025SHT |
