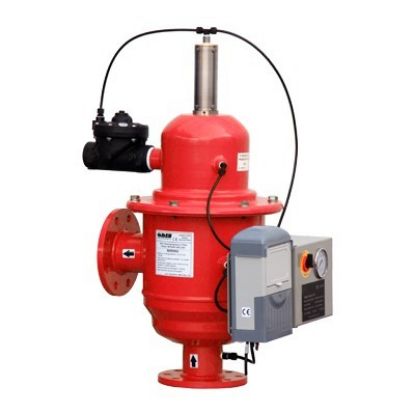

Odis 851 Series Filter
The OdisMatics Hydraulic Filter Model 851/851B are an automatic self cleaning screen filter.
The filter uniqueness lies in the automatic suction system for cleaning the screen. This system
is operated by the inline water pressure without interfering to the filtration process.
The screen cleaning process is short, efficient, saves water and leaves the screen clean.
A pressure switch activates the self cleaning process. A timer backup guarantees that the time
passed from the last self cleaning process will not be longer than the pre-set value determined
by the user.
|
851 Series Auto Clean & Flush 1" BSPF Filter 100 Micron 10 Bar 7m3 max. STOCK CODE: FILTER-OD851025 |
||
|
851 Series Auto Clean & Flush 2" BSPF Filter 100 Micron 10 Bar 25m3 max. STOCK CODE: FILTER-OD851050 |
||
|
851 Series Auto Clean & Flush 4" Flanged Filter 100 Micron 10 Bar 80m3 max. STOCK CODE: FILTER-OD851100 |
||
|
851 Series Flange Kit for 2" 851 Auto Flush Filter STOCK CODE: FILTER-OD851FLGK |
||
|
851 Series Support legs for 851 Series 851 Auto Flush Filters 2", 3" & 4" STOCK CODE: FILTER-OD851LEGS |

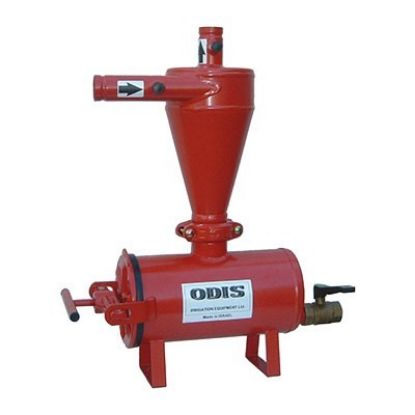

Odis Hydrocyclone Filter
The ODIS Hydrocyclone separator is a simple device, easy to operate and maintain. It has no moving parts or screens. The Hydrocyclone separates sand and other solid matter with very little head loss and 90% or better efficiency, no head loss build up and no clogging by solids being separated.
|
OD Steel ¾" Hydrocyclone filter 2.0m³ -3.5m³ flow with 2 litre chamber (No Feet) STOCK CODE: FILTER-HYCYC020 |
||
|
OD Steel 1" Hydrocyclone filter 3.5 - 7.5m³flow with 2 litre chamber (No Feet) STOCK CODE: FILTER-HYCYC025 |
||
|
OD Steel 1 ½" Hydrocyclone filter 7.5m³ -12m³ flow with 5 litre chamber (No Feet STOCK CODE: FILTER-HYCYC040 |
