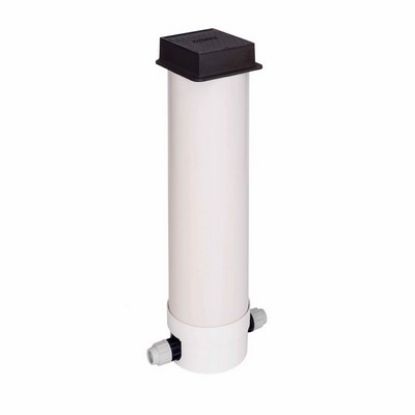

Plasson Meter Boundary Boxes
Plasson water meter boundary boxes are supplied complete with a 3511 Meter Connection Point (MCP) kit for below ground use. The MCP consists of a 25mm compression inlet and outlet, a stop tap and a 1½" concentric water meter connection point (fitted with blanking plug).
The 3513 Cast Iron lid version is Class B rated (5 tonnes) and the 3514 Plastic lid version is Class C (1.5 tonnes).
The 650mm long guard tube can be cut to length
|
Plasson Meter Boundary Box c/w Cast iron Lid. Incl.25mm stop valve & meter mount STOCK CODE: PLAS3513 Supplier SKU: PD35100C |
||
|
Plasson Meter Boundary Box c/w Plastic Lid. Incl.25mm stop valve & meter mount STOCK CODE: PLAS3514 Supplier SKU: PD35100P |

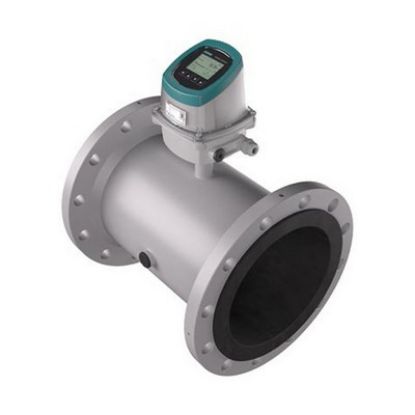

Siemens Sitrans FMS500 MagFlow
The SITRANS FMS500 is a magnetic flowmeter sensor suitable for volume flow measurement of liquids (conductive) and is the ideal product for applications in water abstraction, wastewater treatment, water distribution networks, and irrigation.
|
DN50 PN16 Siemens Sitrans FMS500 Mag Flow Meter NBR 230/1/50Hz & 4-20ma output STOCK CODE: WMMAGSITFMS050FLG Supplier SKU: 7ME65322YC03AGA3ZA00 |
||
|
DN65 PN16 Siemens Sitrans FMS500 Mag Flow Meter NBR 230/1/50Hz & 4-20ma output STOCK CODE: WMMAGSITFMS065FLG Supplier SKU: 7ME65323FC031GA3ZA00 |
||
|
DN80 PN16 Siemens Sitrans FMS500 Mag Flow Meter NBR 230/1/50Hz & 4-20ma output STOCK CODE: WMMAGSITFMS080FLG Supplier SKU: 7ME65323MC031GA3ZA00 |
||
|
DN100 PN16 Siemens Sitrans FMS500 Mag Flow Meter NBR 230/1/50Hz & 4-20ma output STOCK CODE: WMMAGSITFMS100FLG Supplier SKU: 7ME65323TC031GA3ZA00 |
||
|
DN125 PN16 Siemens Sitrans FMS500 Mag Flow Meter NBR 230/1/50Hz & 4-20ma output STOCK CODE: WMMAGSITFMS125FLG Supplier SKU: 7ME65324BC031GA3ZA00 |
||
|
DN150 PN16 Siemens Sitrans FMS500 Mag Flow Meter NBR 230/1/50Hz & 4-20ma output STOCK CODE: WMMAGSITFMS150FLG Supplier SKU: 7ME65324HC031GA3ZA00 |

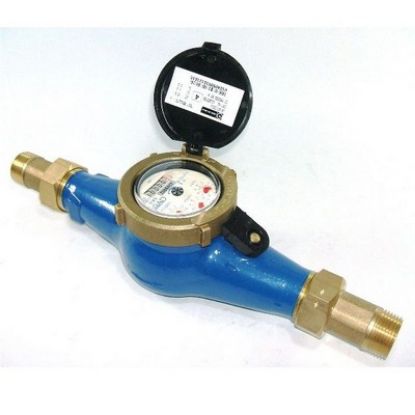

Arad Cold Water Meter
The Arad water meters use a multi-jet principle to give the best cost/performance, long life and flow measurement instruments. The wide clearances in the measuring chamber and negligible area of contact between static and moving parts are the main reason for the high reliability of this design even in hard water areas.
The Arad water meters are WRAS approved and can therefore be used on drinking water supplies. They are also supplied with male BSP union tails. They are suitable for pressures up to 16 bar and temperatures up to 50°C (for higher water temperatures Arad have a hot water meter).
|
Plasson 9001 Concentric Water Meter. 1½'' BSP screw down connection STOCK CODE: PLAS9001 Supplier SKU: PD9001015 |
||
|
ARAD Gladiator 1½" concentric manifold type water meter. Nom. 1.6m³/hr. WRAS STOCK CODE: WMARADCON015 |
||
|
½" ARAD Gladiator Plastic in-line water meter. Nom. 1.6m³/h c/w tails. WRAS STOCK CODE: WMARADCWM015P |
||
|
¾" ARAD M Multi-Jet in-line Cold Water Meter. Nom. 2.5m³/h c/w tails. WRAS STOCK CODE: WMARADCWM020 |
||
|
1" ARAD M Multi-Jet in-line Cold Water Meter. Nom. 3.5m³/h c/w tails. WRAS STOCK CODE: WMARADCWM025 |
||
|
1¼" ARAD M Multi-Jet in-line Cold Water Meter. Nom 6.0m³/h c/w tails. WRAS STOCK CODE: WMARADCWM032 |
||
|
1½" ARAD MS Multi-Jet in-line Cold Water Meter. Nom. 10.0m³/h c/w tails. WRAS STOCK CODE: WMARADCWM040 |
||
|
2" ARAD MS Multi-Jet in-line Cold Water Meter. Nom. 15.0m³/h c/w tails. WRAS STOCK CODE: WMARADCWM050 |
Arad Flanged Water Meter

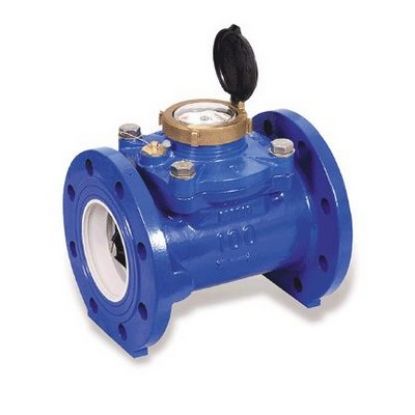

The Arad Woltmann water meter is WRAS approved and suitable for water supply networks, agricultural and industrial applications.
These models have imperial Table D flanges and are not compatible with metric PN16 flanges without suitable flange adaptors
|
3" Table D ARAD Cold Water Meter Flanged. Flow Rates 55-120m³/h. 16 bar max. STOCK CODE: WMARADCWM080FLG |
||
|
4" Table D ARAD Cold Water Meter Flanged. Flow Rates 100-225m³/h. 16 bar max. STOCK CODE: WMARADCWM100FLG |
Arad Irrigation Water Meter

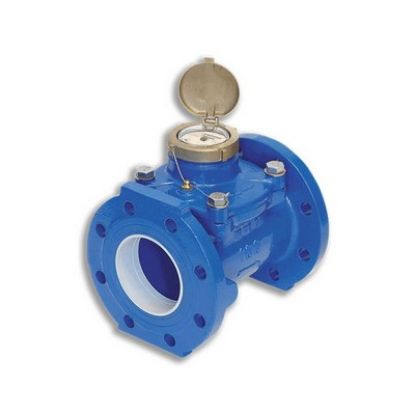

The Arad IRT series of water meters are
specifically designed for all applications with raw water, in particular
agricultural irrigation, gardening and waste waters.
The top mounted tangential impeller measures the flow speed and its rotation is transmitted to a
screen for the visualization of the total recorded volume
The water passage is totally free, allowing the occasional passage of solids such as sand, leaves, stones etc
Available with a pulse output as an option
|
DN80 PN16 ARAD IRT Irrigation Meter with pulse output K = 1:100ltr STOCK CODE: WMARADPUL080FLG |
||
|
DN100 PN16 ARAD IRT Irrigation Meter with pulse output K = 1:100ltr STOCK CODE: WMARADPUL100FLG |
||
|
DN150 PN16 ARAD IRT Irrigation Meter with pulse output K = 1:100ltr STOCK CODE: WMARADPUL150FLG |

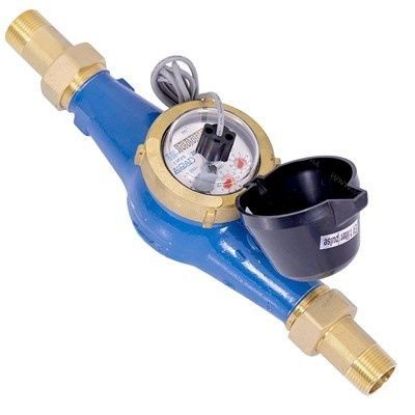

Arad Pulse Cold Water Meter
The Arad water meters use a multi-jet principle to give the best cost/performance, long life and flow measurement instruments. The wide clearances in the measuring chamber and negligible area of contact between static and moving parts are the main reason for the high reliability of this design even in hard water areas.
The Arad water meters are WRAS approved and can therefore be used on drinking water supplies. They are also supplied with male BSP union tails. They are suitable for pressures up to 16 bar and temperatures up to 50°C (for higher water temperatures Arad have a hot water meter).
|
¾" ARAD M Multi-Jet Water Meter c/w pulse & tails. Nom.Flow 2.5m³/h. K = 1:1ltr STOCK CODE: WMARADPUL020 |
||
|
1" ARAD M Multi-Jet Water Meter c/w Pulse & tails. Nom.Flow 3.5m³/h. K = 1:1ltr STOCK CODE: WMARADPUL025 |
||
|
1¼" ARAD M Multi-Jet Water Meter c/w Pulse & tails. Nom.Flow 6.0m³/h. K = 1:1ltr STOCK CODE: WMARADPUL032 |
||
|
1½" ARAD MS Multi-Jet Water Meter c/w Pulse & tails. Nom.Flow 10.0m³/h. K = 1:10 STOCK CODE: WMARADPUL040 |
||
|
2" ARAD MS Multi-Jet Water Meter c/w Pulse & tails. Nom.Flow 15.0m³/h. K = 1:10l STOCK CODE: WMARADPUL050 |

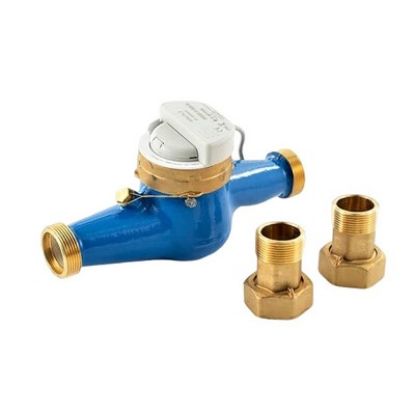

Beta Pulse Cold Water Meter
The Beta water meters use a multi-jet principle to give the best cost/performance, long life and flow measurement instruments. The wide clearances in the measuring chamber and negligible are of contact between static and moving parts are the main reason the high reliability of this design even in hard water areas. They are suitable for pressures up to 16 bar and temperatures up to 50°C.
|
½" Beta SDC Water Meter c/w Pulse. Min Flow 0.03m³/h c/w tails. K = 1:0.25ltr STOCK CODE: WMBETAPUL015LF |

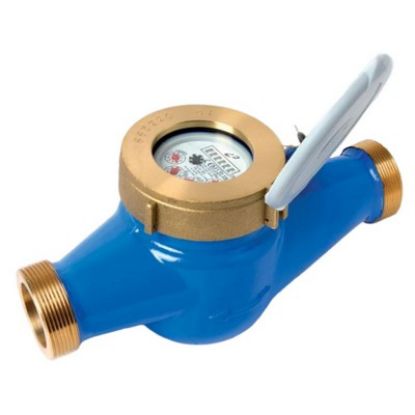

GMDM Meter
The B Meters GMDM-I is a multi-jet, semi-dry type magnetic transmission water meter pre-equipped for remote reading modules with a 360° rotating lid Inductive pre-equipment for the installation of data communication modules come standard. Generally, a non-magnetic pulse output module is used, but other options such as M-Bus wired and Wireless OMS, LoRa and NB-IoT are available on request. Meters can be installed both vertically and horizontally if required. They are supplied with BSP male threaded water meter union tails. The meters are WRAS approved.
|
½" GMDM-I Water Meter. Max Flow 3.1m³/h. WRAS MID Approved c/w tails STOCK CODE: WMBMMJET015 |
||
|
¾" GMDM-I Water Meter. Max Flow 5.0m³/h. WRAS MID Approved c/w tails STOCK CODE: WMBMMJET020 |
||
|
1" GMDM-I Water Meter. Max Flow 7.8m³/h. WRAS MID Approved c/w tails STOCK CODE: WMBMMJET025 |
||
|
1¼" GMDM-I Water Meter. Max Flow 12.5m³/h. WRAS MID Approved c/w tails STOCK CODE: WMBMMJET032 |
||
|
1½" GMDM-I Water Meter. Max Flow 20m³/h. WRAS MID Approved c/w tails STOCK CODE: WMBMMJET040 |
||
|
Pulse Output Module IWM-PL3 for GMDM-I Water Meters. 1 pulse per 10 litres IP68 STOCK CODE: WMBMMJETPULSE10 |
||
|
Pulse Output Module IWM-PL3 for GMDM-I Water Meters. 1 pulse per 1 litre IP68 STOCK CODE: WMBMMJETPULSEK01 |
Woltman Meter

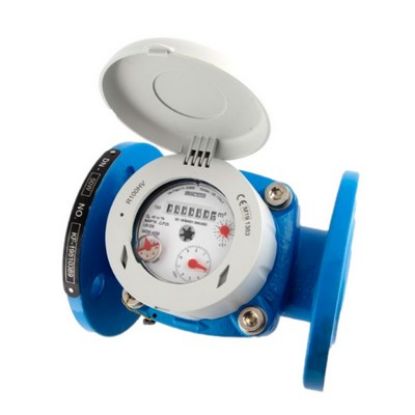

The B Meters WDE-K50 is a PN16 flanged horizontal Woltmann type magnetic transmission water meter pre-equipped for remote reading modules with a 360° rotating dry dial with lid. Inductive pre-equipment for the installation of data communication modules come standard. Generally, a non-magnetic pulse output module is used, but other options such as M-Bus wired and Wireless M-Bus and LoRa are available on request. Meters can be installed both vertically and horizontally if required. The meters are WRAS approved.
|
2" (DN50) WDE-K50 Flanged Woltman Water Meter. Max 50m³/h. WRAS MID STOCK CODE: WMBWDE050FLG |
||
|
2½" (DN65) WDE-K50 Flanged Woltman Water Meter. Max 78m³/h. WRAS MID STOCK CODE: WMBWDE065FLG |
||
|
3" (DN80) WDE-K50 Flanged Woltman Water Meter. Max 125m³/h. WRAS MID STOCK CODE: WMBWDE080FLG |
||
|
4" (DN100) WDE-K50 Flanged Woltman Water Meter. Max 200m³/h. WRAS MID STOCK CODE: WMBWDE100FLG |
||
|
5" (DN125) WDE-K50 Flanged Woltman Water Meter. Max 200m³/h. WRAS MID Pulse K=10 STOCK CODE: WMBWDE125FLG-K010 |
||
|
Pulse Output Module for WDE-K50 Water Meters. 1 pulse per 10 litres IP68 STOCK CODE: WMBWDEPULSEK10 |

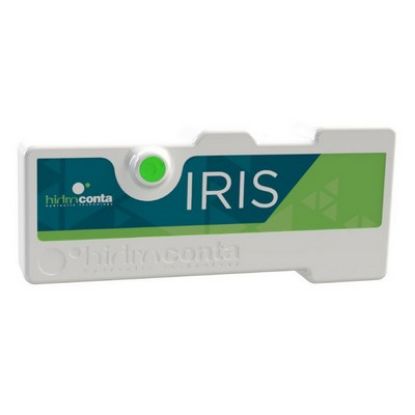

IRIS AMR Communication System
Hidroconta’s IRIS communications module is an AMR device that, once installed on any meter, is able to send and record the volumes shown on the meter so that they can be transparently displayed for the user on a web platform or on an APP.
IRIS has also been developed with the ability to send alerts according to the information obtained from the water meter.
|
IRIS AMR Smart Module for remote monitoring & alarm from any pulse enabled meter STOCK CODE: WMIRIS01 |

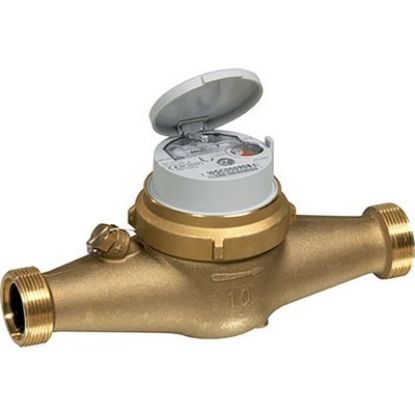

Itron Aquadis Cold Water Meter
Aquadis+ is a world-class piston type volumetric water meter. Focusing on reliable and long-term performance, Aquadis+ offers maximised revenue collection provided by an innovative design to maintain high efficiency over time. The working principle of Aquadis+ is based on the combination of an extra dry register (no gears in the water), associated with a hermetical measuring element, using the concept of magnetic transmission. Aquadis+ is compliant with regulations for products to use in contact with water intended for human consumption. Aquadis+ has approvals granted by the following laboratories: ACS (France), Belgaqua (Belgium), Kiwa (Netherlands) and WRAS (United Kingdom).
|
½" Itron Aquadis rotary water meter WRAS approved. Nom.Flow 1.5m³/h. No Tails STOCK CODE: WMITRONAQUADIS015 |
||
|
¾" Itron Aquadis rotary water meter WRAS approved. Nom.Flow 2.5m³/h. No Tails STOCK CODE: WMITRONAQUADIS020 |
||
|
1" Itron Aquadis rotary water meter WRAS approved. Nom.Flow 3.5m³/h. No Tails STOCK CODE: WMITRONAQUADIS025 |
||
|
1¼" Itron Aquadis rotary water meter WRAS approved. Nom.Flow 5.0m³/h. No Tails STOCK CODE: WMITRONAQUADIS032 |
||
|
1½" Itron Aquadis rotary water meter WRAS approved. Nom.Flow 10m³/h. No Tails STOCK CODE: WMITRONAQUADIS040 |
Itron Cyble Pulse Sensor
Aquadis+ is a world-class piston type volumetric water meter. Focusing on reliable and long-term performance, Aquadis+ offers maximised revenue collection provided by an innovative design to maintain high efficiency over time. The working principle of Aquadis+ is based on the combination of an extra dry register (no gears in the water), associated with a hermetical measuring element, using the concept of magnetic transmission. Aquadis+ is compliant with regulations for products to use in contact with water intended for human consumption. Aquadis+ has approvals granted by the following laboratories: ACS (France), Belgaqua (Belgium), Kiwa (Netherlands) and WRAS (United Kingdom).
|
Itron Cyble 2 wire pulse sensor for all Itron Meters. 1 pulse per 1 litres. IP68 STOCK CODE: WMETERWRASCYBLE-K1 |
||
|
Itron Cyble 2 wire pulse sensor for all Itron Meters. 1 pulse per 10 litres IP68 STOCK CODE: WMETERWRASCYBLE-K10 |
