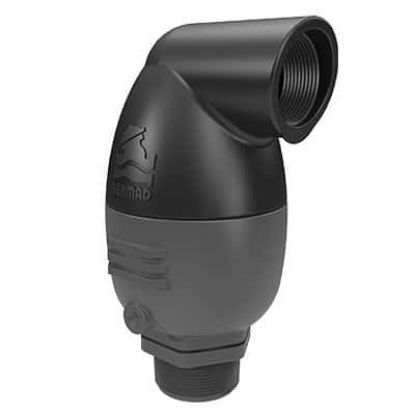

Bermad Air & Vacuum Valves
BERMAD C10 is a high quality combination air valve for a variety of irrigation networks and operating conditions. It evacuates air during pipeline filling, allows efficient release of air pockets from pressurized pipes, and enables large volume air intake in the event of network draining. With its advanced aerodynamic design and double orifice, this valve provides excellent protection against air accumulation and vacuum formation, with improved sealing in low pressure conditions.
|
Bermad C10 1" BSPM Combination Air and Vacuum Release Valve 0.1 to 10 bar STOCK CODE: AIRVAC025 |
||
|
Bermad C10 2" BSPM Combination Air and Vacuum Release Valve 0.1 to 10 bar STOCK CODE: AIRVAC050 |

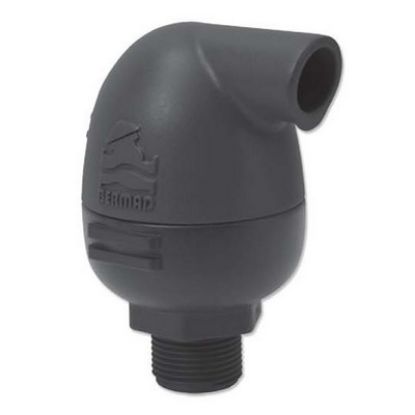

Bermad A10 Air Release Valve
BERMAD A10 is a high quality automatic air release valve that allows efficient release of air pockets from pressurized pipelines. With its advanced design and automatic orifice, this valve provides excellent protection against air accumulation with improved sealing in low pressure conditions.
|
Bermad A10 1" BSPM Automatic Air Release Valve 0.1 to 10 Bar STOCK CODE: AIRRBERM025 |

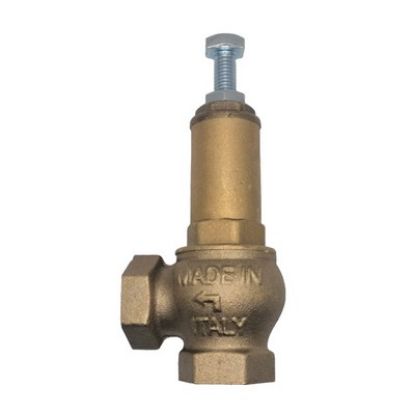

Brass Pressure Relief Valve
A basic economy brass (up to 1¼") or bronze (1½" and 2") spring safety pressure relief valve used with a pressurized water system to prevent pumps from 'dead-heading' when the pressure reaches a pre-set limit due to closed valves. When the system set pressure is exceeded, the valve opens allowing the water to bypass and therefore reduce the pressure. Generally installed to vent either into a water tank or to waste, this will allow the water to circulate without causing damage to the pump.
Maximum pressure is 10 bar and available with an adjustable spring range of 2 - 9 bar only.
|
½" BSP Brass Economy Pressure Relief Valve. Metal seat. 2 to 9 Bar adjustable STOCK CODE: PRV015 |
||
|
¾" BSP Brass Economy Pressure Relief Valve. Metal seat. 2 to 9 Bar adjustable STOCK CODE: PRV020 |
||
|
1" BSP Brass Economy Pressure Relief Valve. Metal seat. 2 to 9 Bar adjustable STOCK CODE: PRV025 |
||
|
1¼" BSP Brass Economy Pressure Relief Valve. Metal seat. 2 to 9 Bar adjustable STOCK CODE: PRV032 |
||
|
1½" BSP Bronze Economy Pressure Relief Valve. Metal seat. 2 to 9 Bar adjustable STOCK CODE: PRV040 |
||
|
2" BSP Bronze Economy Pressure Relief Valve. Metal seat. 2 to 9 Bar adjustable STOCK CODE: PRV050 |

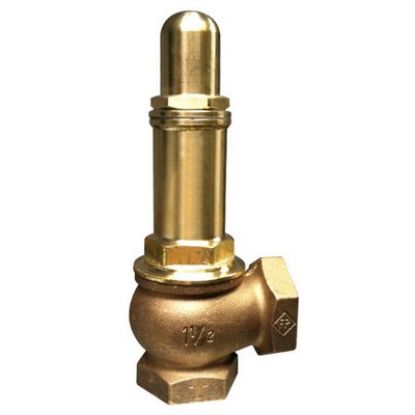

Leengate Safety Relief Valve
Leengate LV 1019 brass/bronze spring safety pressure relief valves with cap tos are used with a pressurized water system to prevent pumps from 'dead-heading' when the pressure reaches a pre-set limit due to closed valves. When the system set pressure is exceeded, the valve opens allowing the water to bypass and therefore reduce the pressure. Generally installed to vent either into a water tank or to waste, this will allow the water to circulate without causing damage to the pump.
Maximum pressure is 16 bar (up to 2"), but they are available with a choice of adjustable springs ranges within each size.
On request and at an additional cost, the valves can be factory calibrated and set at a specific relief pressure. A certificate of conformity will also be issued.

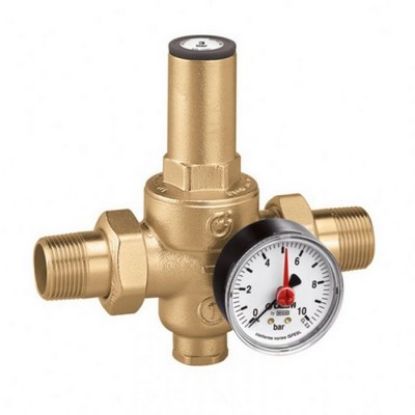

Pressure Reducing Valve
Caleffi Prescal series 536 brass pressure reducing valves have been specifically design for using in domestic and light commercial or industrial applications. They are installed to reduce and stabilise water pressures from supplies (mains water or pressure boosted) that could otherwise be affected and not work correctly with high inlet pressures.
The Caleffi pressure reducing valves have been designed to work at a variety of inlet (maximum 25 bar) and outlet pressures ranging from 0.5 to 6.0 bar. They are of brass construction with a maximum temperature rating of 80°C. WRAS Approved and 5 year manufacturers warranty.
Supplied complete with union nuts with male BSP connections and a pressure gauge for easy adjustment and monitoring of downstream pressure.
|
Pressure Reducing Valve ½" BSPM 25 Bar In / 0.5-6 Bar out with gauge STOCK CODE: REDVALV015 Supplier SKU: 536041 |
||
|
Pressure Reducing Valve ¾" BSPM 25 Bar In / 0.5-6 Bar out with gauge STOCK CODE: REDVALV020 Supplier SKU: 536051 |
||
|
Pressure Reducing Valve 1" BSPM 25 Bar In / 0.5-6 Bar out with gauge STOCK CODE: REDVALV025 Supplier SKU: 536061 |
||
|
Pressure Reducing Valve 1¼" BSP 25 Bar In / 0.5-6 Bar out with gauge STOCK CODE: REDVALV032 Supplier SKU: 536071 |
||
|
Pressure Reducing Valve 1½" BSP 25 Bar In / 0.5-6 Bar out with gauge STOCK CODE: REDVALV040 Supplier SKU: 536081 |
||
|
Pressure Reducing Valve 2" BSP 25 Bar In / 0.5-6 Bar out with gauges STOCK CODE: REDVALV050 Supplier SKU: 536591 |

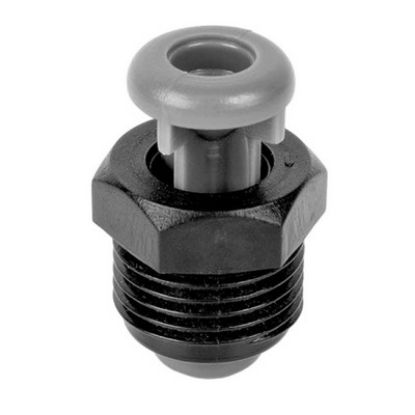

Vacuum Breaker
Bermad vacuum breakers have a large air passage, high resistance to chemicals, smooth reliable operation. 10 bar maximum working pressure. Also helps to prevent siphonage on systems where storage tank is at higher level than solenoids.
|
½" BSPM Bermad Vacuum Breaker Air Valve STOCK CODE: VACUUM BREAKER015 |
