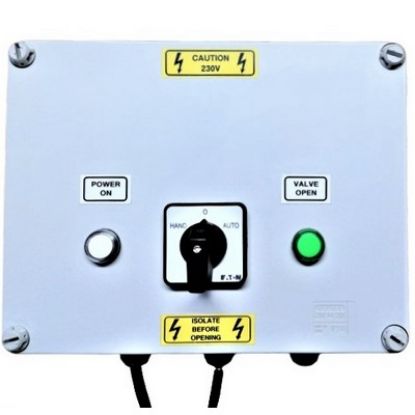

Level Control Panel
Built by our own electricians, the level control panel comes complete with transformer, rollerball float switch and provision to connect a WRC approved brass solenoid valve (supplied separately). When used in conjunction with a tundish (TUNDISHANGLE020-025) this is ideal for a mains water top up to an underground tank. Cable to solenoid and float switch are low voltage 24 VAC; main box with transformer requires a 230V supply. For specific info on correct installation call our technical team.
|
Control Panel c/w float switch, HOA, BUT NO BRASS SOLENOID (240x190x90) STOCK CODE: LEVELCON000 |
||
|
Control Panel c/w Timer, float switch, HOA, BUT NO BRASS SOLENOID (240x190x90) STOCK CODE: LEVELCON000TMR |
||
|
Control Panel c/w float switch, 24V brass ½" solenoid valve (WRC Approved) & HOA STOCK CODE: LEVELCON015 |
||
|
Control Panel c/w float switch, 24V brass ¾" solenoid valve (WRC Approved) & HOA STOCK CODE: LEVELCON020 |
||
|
Control Panel c/w float switch, 24V brass 1" solenoid valve (WRC Approved) & HOA STOCK CODE: LEVELCON025 |
||
|
Control Panel with probe control c/w HOA, BUT NO BRASS SOLENOID OR PROBES STOCK CODE: LEVELCONPROBE |
||
|
Micro horizontal float switch for dry run protection c/w 4m LiYY cable STOCK CODE: LEVELSENS01 |

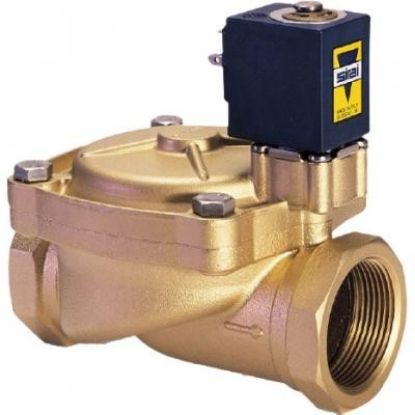

Brass WRAS Solenoid Valve
The Sirai L182 solenoid valve is a 3/8" - 2" BSP two way normally closed (2/2 NC) pilot operated, diaphragm solenoid valve with brass body and WRAS approved EPDM seal. It is suitable for mains/potable water under pressure.
Certain models are also available with a manual override on request.
Stocked models have a 24 VAC coil fitted, but other voltages as below can be supplied on request.
Available in 12V DC, 24V DC and 110V AC and 230V AC.
|
CNE LARGE PG11 2P+E coil connector with seal for IP65 protection (over 1") STOCK CODE: SOLVALCNELARGE |
||
|
CNE SMALL PG9 2P+E coil connector with seal for IP65 protection (up to 1") STOCK CODE: SOLVALCNESMALL |
||
|
SIRAI 180/182 ZB10A 230VAQC 230V Solenoid Coil up to 1" STOCK CODE: SOLVALCOIL240V |
||
|
SIRAI 180/182 ZB10A 24VAQC 24V Solenoid Coil up to 1" STOCK CODE: SOLVALCOIL24V |
||
|
SIRAI 182 B48 24VAC 24V Solenoid Coil for Sirai 1¼" to 2" Brass Valves STOCK CODE: SOLVALCOIL24V2 |
||
|
½" BSP SIRAI L182 WRAS approved NC brass solenoid valve - 24VAC EDPM seal STOCK CODE: SOLVALSIRAI015 |
||
|
¾" BSP SIRAI L182 WRAS approved NC brass solenoid valve - 24VAC EDPM seal STOCK CODE: SOLVALSIRAI020 |
||
|
1" BSP SIRAI L182 WRAS approved NC brass solenoid valve - 24VAC EDPM seal STOCK CODE: SOLVALSIRAI025 |
||
|
1½" BSP SIRAI L182 WRAS Approved NC brass solenoid valve - 24VAC EPDM seal STOCK CODE: SOLVALSIRAI040 |
||
|
2" BSP SIRAI L182 WRAS Approved NC brass solenoid valve - 24VAC EDPM seal STOCK CODE: SOLVALSIRAI050 |

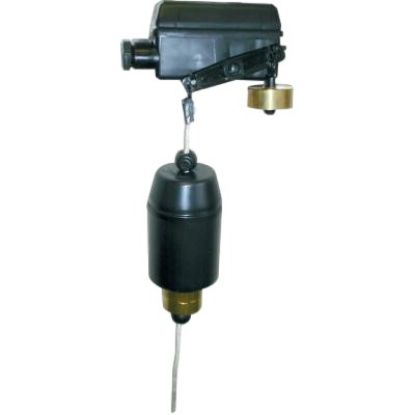

Stuart Turner Float Switch
The Stuart Turner Switch is designed for simple, reliable control of a pump or solenoid valve dependant on water level in a tank or sump. They can easily be adapted to either empty or fill a tank.
|
Stuart Turner F1 20/8 single pole 250 volt AC (max) Float Switch STOCK CODE: STF120-8 |

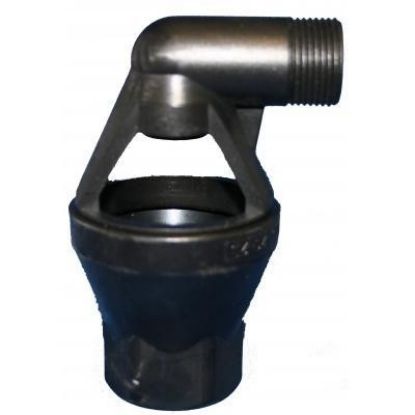

Tundish
Tundishes are used when an air gap or air break is required to conform to water regulations. This is usually required when used for topping up an underground tank. Therefore if the underground tank ever floods a direct contact between mains water and non-potable or groundwater does not happen.
The tundish must be installed above ground as per the Water Regulations. Once the water has passed through the tundish it will transfer via gravity in the pre-determined pipe work to the tank, thereby preventing any possibility of water back flow. Made from polyethylene.
|
¾" male - 1" BSPF plastic 90° Angle Tundish STOCK CODE: TUNDISHANGLE020-025 |
