Landscape Watering Systems Limited. AVK Supa Cast Iron Fittings

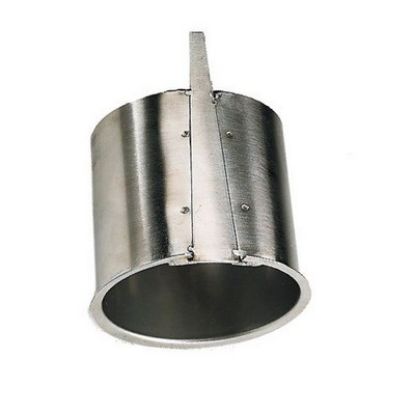

AVK Pipe Support Bush (Liner)

AVK recommends usage of a support bushes in PE pipes when using a tensile coupling or flange adaptor such as a Supa Plus™ or Supa Maxi™ coupling. AVK support bushes are made of stainless steel AISI 304 and are available for SDR 11, SDR 13,6, SDR 17 and SDR 17,6 PE pipes. For pipes supplied in rolls, AVK recommends using support bushes in order to ensure correct chamfering and restore the roundness of the pipe.

50mm SDR11 pipe support bush STOCK CODE: AVKPIPELINER11050 Supplier SKU: 05-050-74
63mm SDR11 pipe support bush STOCK CODE: AVKPIPELINER11063 Supplier SKU: 05-063-74
90mm SDR11 pipe support bush STOCK CODE: AVKPIPELINER11090 Supplier SKU: 05-090-74
110mm SDR11 pipe support bush STOCK CODE: AVKPIPELINER11110 Supplier SKU: 05-110-74
125mm SDR11 pipe support bush STOCK CODE: AVKPIPELINER11125 Supplier SKU: 05-125-74
160mm SDR11 pipe support bush STOCK CODE: AVKPIPELINER11160 Supplier SKU: 05-160-74
180mm SDR11 pipe support bush STOCK CODE: AVKPIPELINER11180 Supplier SKU: 05-180-74
200mm SDR11 pipe support bush STOCK CODE: AVKPIPELINER11200 Supplier SKU: 05-200-74
225mm SDR11 pipe support bush STOCK CODE: AVKPIPELINER11225 Supplier SKU: 05-225-74
250mm SDR11 pipe support bush STOCK CODE: AVKPIPELINER11250 Supplier SKU: 05-250-74
315mm SDR11 pipe support bush STOCK CODE: AVKPIPELINER11315 Supplier SKU: 05-315-74
50mm SDR17 pipe support bush STOCK CODE: AVKPIPELINER17050 Supplier SKU: 05-050-73
63mm SDR17 pipe support bush STOCK CODE: AVKPIPELINER17063 Supplier SKU: 05-063-73
90mm SDR17 pipe support bush STOCK CODE: AVKPIPELINER17090 Supplier SKU: 05-090-73
110mm SDR17 pipe support bush STOCK CODE: AVKPIPELINER17110 Supplier SKU: 05-110-73
125mm SDR17 pipe support bush STOCK CODE: AVKPIPELINER17125 Supplier SKU: 05-125-73
160mm SDR17 pipe support bush STOCK CODE: AVKPIPELINER17160 Supplier SKU: 05-160-73
180mm SDR17 pipe support bush STOCK CODE: AVKPIPELINER17180 Supplier SKU: 05-180-73
200mm SDR17 pipe support bush STOCK CODE: AVKPIPELINER17200 Supplier SKU: 05-200-73
225mm SDR17 pipe support bush STOCK CODE: AVKPIPELINER17225 Supplier SKU: 05-225-73
250mm SDR17 pipe support bush STOCK CODE: AVKPIPELINER17250 Supplier SKU: 05-250-73
315mm SDR17 pipe support bush STOCK CODE: AVKPIPELINER17315 Supplier SKU: 05-315-73

AVK Supa Coupler

Universal Supa® coupling - bolts/nuts of mild steel for drinking water and neutral liquids to max. 70°C. Maximum working pressure 16 bar. Insulation essential for temperatures of 0°C and below.

AVK Supa® is a range of universal straight couplings, step couplings and flange adaptors for cast iron, ductile iron, steel, uPVC and asbestos cement pipes. Supa® couplings are easy to mount due to the anti-friction coated bolts and nuts and the possibility of up to ±4° angular deflection. The Mild steel GEOMET bolts/nuts and the high quality coating offer a durable corrosion protection.

DN40 46 - 63mm AVK Series 601 Supa straight coupler STOCK CODE: AVKSUPACOUPDN040 Supplier SKU: 601-063
DN50 57 - 74mm AVK Series 601 Supa straight coupler STOCK CODE: AVKSUPACOUPDN050 Supplier SKU: 601-074
DN65 68 - 85mm AVK Series 601 Supa straight coupler STOCK CODE: AVKSUPACOUPDN065 Supplier SKU: 601-085
DN80 84 - 106mm AVK Series 601 Supa straight coupler STOCK CODE: AVKSUPACOUPDN080 Supplier SKU: 601-106
DN100 109 - 133mm AVK Series 601 Supa straight coupler STOCK CODE: AVKSUPACOUPDN100 Supplier SKU: 601-133
DN150 157 - 183mm AVK Series 601 Supa straight coupler STOCK CODE: AVKSUPACOUPDN150 Supplier SKU: 601-183
DN200 218 - 242mm AVK Series 601 Supa straight coupler STOCK CODE: AVKSUPACOUPDN200 Supplier SKU: 601-242
DN250 266 - 292mm AVK Series 601 Supa straight coupler STOCK CODE: AVKSUPACOUPDN250 Supplier SKU: 601-292
DN300 324 - 350mm AVK Series 601 Supa straight coupler STOCK CODE: AVKSUPACOUPDN315 Supplier SKU: 601-350

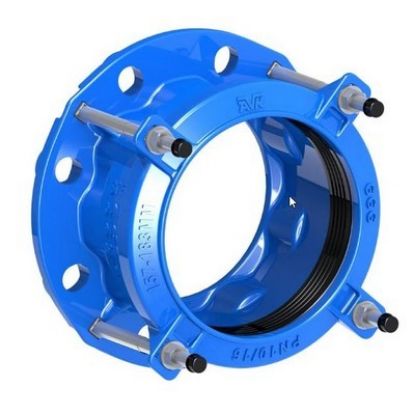

AVK Supa Flange Adaptor

Supa® flange adaptor - Geomet bolts/nuts, for drinking water and neutral liquids to max. 70°C. Maximum working pressure 16 bar. Insulation essential for temperatures of 0°C and below.

AVK Supa® is a range of universal straight couplings, step couplings and flange adaptors for cast iron, ductile iron, steel, uPVC and asbestos cement pipes. Supa®flange adaptors are easy to mount due to the anti-friction coated bolts and nuts and the possibility of up to ±4° angular deflection. The Mild steel GEOMET bolts/nuts and the high quality coating offer a durable corrosion protection.

DN40 46 - 63mm AVK Series 603 Supa flange adaptor STOCK CODE: AVKSUPAFLGDN040 Supplier SKU: 603-063
DN50 57 - 74mm AVK Series 603 Supa flange adaptor STOCK CODE: AVKSUPAFLGDN050 Supplier SKU: 603-074
DN65 68 - 85mm AVK Series 603 Supa flange adaptor STOCK CODE: AVKSUPAFLGDN065 Supplier SKU: 603-085
DN80/3" 84 - 106mm AVK Series 603 Supa Flange Adaptor STOCK CODE: AVKSUPAFLGDN080 Supplier SKU: 603-106
DN100/4" 109 - 133mm AVK Series 603 Supa Flange Adaptor STOCK CODE: AVKSUPAFLGDN100 Supplier SKU: 603-133
DN125/150 132 - 157mm AVK Series 603 Supa flange adaptor STOCK CODE: AVKSUPAFLGDN125 Supplier SKU: 603-157
DN150 157 - 183mm AVK Series 603 Supa flange adaptor STOCK CODE: AVKSUPAFLGDN150 Supplier SKU: 603-183
DN200 218 - 244mm AVK Series 603 Supa flange adaptor STOCK CODE: AVKSUPAFLGDN200 Supplier SKU: 603-242
DN250 266 - 292mm AVK Series 603 Supa flange adaptor STOCK CODE: AVKSUPAFLGDN250 Supplier SKU: 603-292
DN300 324 - 350mm AVK Series 603 Supa flange adaptor STOCK CODE: AVKSUPAFLGDN300 Supplier SKU: 603-350

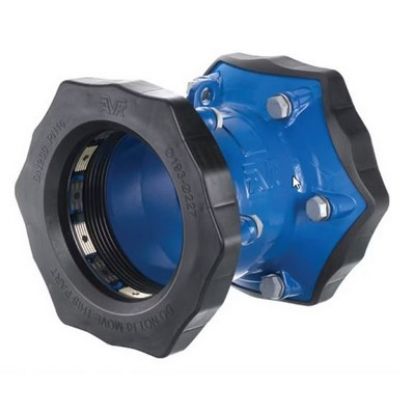

AVK SupaMaxi Coupler

Supa Maxi™ straight coupling, universal and tensile with A2 bolts / A4 nuts for drinking water and neutral liquids -10°C to +70°C

AVK’s Supa Maxi™ range of universal tensile couplings sets a new standard. The patented SupaGrip™ sealing support system with flexible bracket ensures full support of the gasket and full tensile strength on all pipe types up to PN 16. Supa Maxi™ couplings are very easy to mount with the possibility of ±4° angular deflection, the permanent protection caps, the lifting eye and the fact that they are tightened from the sleeve side with no need for re-tightening the bolts.

DN50 48 - 71mm AVK Series 631 SupaMaxi straight coupler STOCK CODE: AVKSUPAMAXICOUPDN050 Supplier SKU: 631-071
DN65 69 - 91mm AVK Series 631 SupaMaxi straight coupler STOCK CODE: AVKSUPAMAXICOUPDN065 Supplier SKU: 631-091
DN80 82 - 106mm AVK Series 631 SupaMaxi straight coupler STOCK CODE: AVKSUPAMAXICOUPDN080 Supplier SKU: 631-106
DN100 104 - 133mm AVK Series 631 SupaMaxi straight coupler STOCK CODE: AVKSUPAMAXICOUPDN100 Supplier SKU: 631-133
DN150 159 - 188mm AVK Series 631 SupaMaxi straight coupler STOCK CODE: AVKSUPAMAXICOUPDN150 Supplier SKU: 631-188

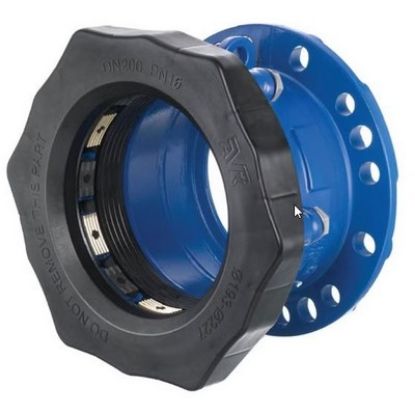

AVK SupaMaxi Flange Adaptor

Supa Maxi™ flange adaptor, universal and tensile with A2 bolts / A4 nuts. For drinking water and neutral liquids -10°C to +70°C

AVK’s Supa Maxi™ range of universal tensile Flange Adaptors sets a new standard. The patented SupaGrip™ sealing support system with flexible bracket ensures full support of the gasket and full tensile strength on all pipe types up to PN 16. Supa Maxi™ couplings are very easy to mount with the possibility of ±4° angular deflection, the permanent protection caps, the lifting eye and the fact that they are tightened from the sleeve side with no need for re-tightening the bolts.

DN40/50 48 - 71mm AVK Series 633 Supa Maxi flange adaptor STOCK CODE: AVKSUPAMAXIFLGDN050 Supplier SKU: 633-071
DN50/65 69 - 91mm AVK Series 633 Supa Maxi Flange Adaptor STOCK CODE: AVKSUPAMAXIFLGDN065 Supplier SKU: 633-091
DN80/3" 82 - 106mm AVK Series 633 Supa Maxi Flange Adaptor STOCK CODE: AVKSUPAMAXIFLGDN080 Supplier SKU: 633-106
DN100/4" 104 - 133mm AVK Series 633 Supa Maxi flange adaptor STOCK CODE: AVKSUPAMAXIFLGDN100 Supplier SKU: 633-133
DN150/6" 159 - 188mm AVK Series 633 Supa Maxi flange adaptor STOCK CODE: AVKSUPAMAXIFLGDN150 Supplier SKU: 633-188

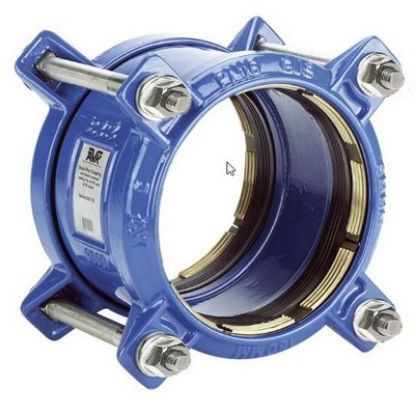

AVK SupaPlus Coupler

For Polyethylene pipes PE100 for drinking water and neutral liquids to max. 70°C

AVK Supa Plus™ is a range of tensile couplings, flange adaptors and end caps dedicated for PE and uPVC pipes. Supa Plus™ couplings offer a great flexibility and are very easy to mount due to the combined compression gasket which enables ±3.5° angular deflection and makes it easy to insert the pipe ends even in the large dimensions. The external M16 bolts of anti-friction coated stainless steel and the high quality coating offer a durable corrosion protection.

50mm AVK Series 621 Supa Plus straight coupler STOCK CODE: AVKSUPAPLUSCOUP050 Supplier SKU: 621-050
63mm AVK Series 621 Supa Plus straight coupler STOCK CODE: AVKSUPAPLUSCOUP063 Supplier SKU: 621-063
90mm AVK Series 621 Supa Plus straight coupler STOCK CODE: AVKSUPAPLUSCOUP090 Supplier SKU: 621-090
110mm AVK Series 621 Supa Plus straight coupler STOCK CODE: AVKSUPAPLUSCOUP110 Supplier SKU: 621-110
125mm AVK Series 621 Supa Plus straight coupler STOCK CODE: AVKSUPAPLUSCOUP125 Supplier SKU: 621-125
160mm AVK Series 621 Supa Plus straight coupler STOCK CODE: AVKSUPAPLUSCOUP160 Supplier SKU: 621-160
180mm AVK Series 621 Supa Plus straight coupler STOCK CODE: AVKSUPAPLUSCOUP180 Supplier SKU: 621-180
200mm AVK Series 621 Supa Plus straight coupler STOCK CODE: AVKSUPAPLUSCOUP200 Supplier SKU: 621-200
225mm AVK Series 621 Supa Plus straight coupler STOCK CODE: AVKSUPAPLUSCOUP225 Supplier SKU: 621-225
250mm AVK Series 621 Supa Plus straight coupler STOCK CODE: AVKSUPAPLUSCOUP250 Supplier SKU: 621-250
315mm AVK Series 621 Supa Plus straight coupler STOCK CODE: AVKSUPAPLUSCOUP315 Supplier SKU: 621-315

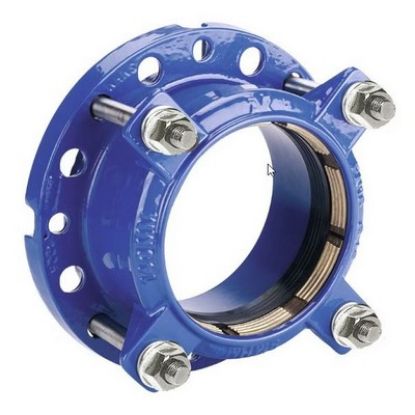

AVK SupaPlus Flange Adaptor

Tensile flange adaptor for PE pipes; for drinking water and other neutral liquids to max. 70°C

AVK Supa Plus® is a range of couplings, flange adaptors and end caps dedicated for tensile or non-tensile attachment on PE and uPVC pipes. Supa Plus® couplings offer a great flexibility and are very easy to mount due to the compression gasket that enables up to 3.5° angular deflection and makes it easy to insert the pipe ends even in the large dimensions. The external bolts of either anti-friction coated stainless steel or zinc-coated 8.8 together with the high quality epoxy coating offer a durable corrosion protection.

50mm AVK Series 623 Supa Plus DN40 flange adaptor STOCK CODE: AVKSUPAPLUSFLG050 Supplier SKU: 623-050
63mm AVK Series 623 Supa Plus DN50 flange adaptor STOCK CODE: AVKSUPAPLUSFLG063 Supplier SKU: 623-063
90mm AVK Series 623 Supa Plus DN80 flange adaptor STOCK CODE: AVKSUPAPLUSFLG090 Supplier SKU: 623-090
110mm AVK Series 623 Supa Plus DN100 flange adaptor STOCK CODE: AVKSUPAPLUSFLG110 Supplier SKU: 623-110
125mm AVK Series 623 Supa Plus DN100 flange adaptor STOCK CODE: AVKSUPAPLUSFLG125 Supplier SKU: 623-125
160mm AVK Series 623 Supa Plus DN150 flange adaptor STOCK CODE: AVKSUPAPLUSFLG160 Supplier SKU: 623-160
180mm AVK Series 623 Supa Plus DN150 flange adaptor STOCK CODE: AVKSUPAPLUSFLG180 Supplier SKU: 623-180
200mm AVK Series 623 Supa Plus DN200 flange adaptor STOCK CODE: AVKSUPAPLUSFLG200 Supplier SKU: 623-200
225mm AVK Series 623 Supa Plus DN200 flange adaptor STOCK CODE: AVKSUPAPLUSFLG225 Supplier SKU: 623-225
250mm AVK Series 623 Supa Plus DN250 flange adaptor STOCK CODE: AVKSUPAPLUSFLG250 Supplier SKU: 623-250
315mm AVK Series 623 Supa Plus DN300 flange adaptor STOCK CODE: AVKSUPAPLUSFLG315 Supplier SKU: 623-315

AVK Supa Cast Iron Fittings
