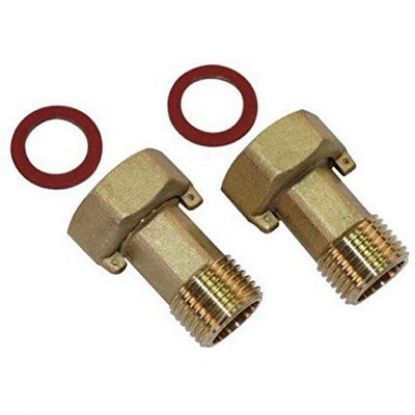

Water Meter Tail Sets
Replacement brass water meter tail sets complete with gaskets to allow easy removal and replacement of a water meter if ever required.The male 'tail' matches the meters nominal size.
The female BSP threaded union that connects to the meter is a size larger than the BSP threaded male connection eg 1" BSP female union has a ¾" BSP male tail for a ¾" nominally sized water meter.
A water meter should always be sized on the flow rate required, and not on the installation pipe size.
|
Brass ½" Water Meter Union Tail set c/w gaskets. ¾" BSPF x ½" BSPM STOCK CODE: WMTAIL015 |
||
|
Brass ¾" Water Meter Union Tail set c/w gaskets. 1" BSPF x ¾" BSPM STOCK CODE: WMTAIL020 |
||
|
Brass 1" Water Meter Union Tail set c/w gaskets. 1¼" BSPF x 1" BSPM STOCK CODE: WMTAIL025 |
||
|
Brass 1¼" Water Meter Union Tail set c/w gaskets. 1½" BSPF x 1¼" BSPM STOCK CODE: WMTAIL032 |
||
|
Brass 1½" Water Meter Union Tail set c/w gaskets. 2" BSPF x 1½" BSPM STOCK CODE: WMTAIL040 |
||
|
Brass 2" Water Meter Union Tail set c/w gaskets. 2½" BSPF x 2" BSPM STOCK CODE: WMTAIL050 |

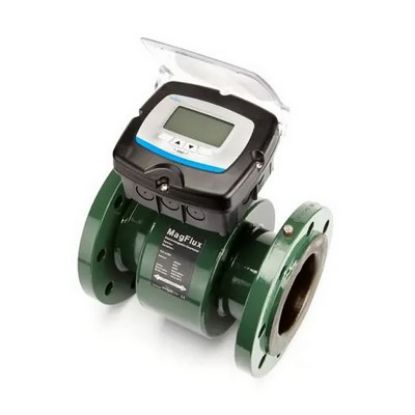

Flygt Magflux Water Meter
Flygt MagFlux are competitively priced compact electromagnetic flow meters, suitable for a wide range of liquids from clean to waste and process water. Highly accurate at low and high flow rates, with a meter-mounted waterproof sensor/display that can be networked using Modbus or Profibus.
Many options available including panel and remote mounted sensors, and sizes ranging from DN20 (¾") to DN1200 (48")

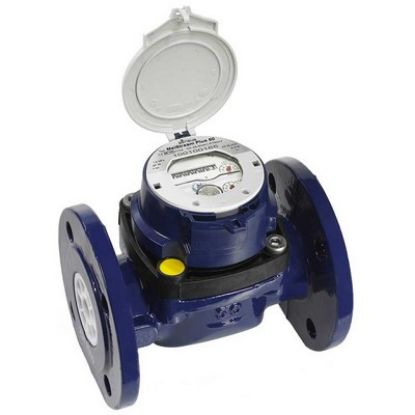

Meistream Water Meter
Xylem Sensus Meistream are industrial strength water meters suitable for billing of potable water if necessary. Suitable for vertical and horizontal installation, they do not generally require any straight lengths of upstream or downstream pipe to ensure reading accuracy making them very suitable for installation in pump houses.
|
DN50 PN16 Meistream helical vane cold water meter. Nom flow 50 m³/hr. L=200mm STOCK CODE: WMSENSMEI050FLG |
||
|
DN80 PN16 Meistream helical vane cold water meter. Nom flow 120 m³/hr. L=200mm STOCK CODE: WMSENSMEI080FLG |
||
|
DN100 PN16 Meistream helical vane cold water meter. Nom flow 230 m³/hr. L=250mm STOCK CODE: WMSENSMEI100FLG |
||
|
Meistream HRIMei 5-wire Data Interface/Pulse module. DN40 to 125. 10l/pulse STOCK CODE: WMSENSMEIPU1 |

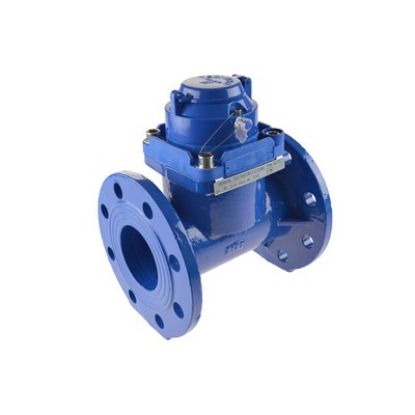

Tecnidro TW Water Meter
The Tecnidro TW series of water meters are
specifically designed for all applications with raw water, in particular
agricultural irrigation, gardening and waste waters.
The top mounted tangential impeller measures the flow speed and its rotation is transmitted to a
screen for the visualization of the total recorded volume .Can be used for billing purposes of irrigation water only and are supplied with a test certificate for Environment Agency requirements.
The water passage is totally free, allowing the occasional passage of solids such as sand, leaves, stones etc
Available with a pulse output as an option.
|
DN50 Tecnidro TW PN16 Irrigation Water Meter. Nom 25m³/h. L=200mm STOCK CODE: WMTECIMP050FLG |
||
|
DN80 Tecnidro TW PN16 Irrigation Water Meter. Nom 63m³/h. L=225mm STOCK CODE: WMTECIMP080FLG |
||
|
DN80 Tecnidro TW PN16 Irrigation meter. Nom 63m³/h. L=225mm. K100 IST-C pulse STOCK CODE: WMTECIMP080FLG-K10 |
||
|
DN100 Tecnidro TW PN16 Irrigation Water Meter. Nom 100m³/h. L=250mm STOCK CODE: WMTECIMP100FLG |
||
|
DN100 Tecnidro TW PN16 Irrigation Meter. Nom 100m³/h. L=250mm. K100 IST-C pulse STOCK CODE: WMTECIMP100FLG-K10 |
||
|
DN150 Tecnidro TW PN16 Irrigation Water Meter. Nom 250m³/h. L=300mm STOCK CODE: WMTECIMP150FLG |
||
|
DN200 Tecnidro TW PN16 Irrigation Water Meter. Nom 400m³/h. L=350mm STOCK CODE: WMTECIMP200FLG |
