Home Pumps & Aerators Franklin Pumps Submersible Pumps Franklin ES5/5 0.9kW 230/1/50Hz 5" submersible pump c/w float switch (4SC9)
Picture of Franklin ES5/5 0.9kW 230/1/50Hz 5" submersible pump c/w float switch (4SC9)
Picture of Franklin ES5/5 0.9kW 230/1/50Hz 5" submersible pump c/w float switch (4SC9)
Picture of Franklin ES5/5 0.9kW 230/1/50Hz 5" submersible pump c/w float switch (4SC9)
Picture of Franklin ES5/5 0.9kW 230/1/50Hz 5" submersible pump c/w float switch (4SC9)

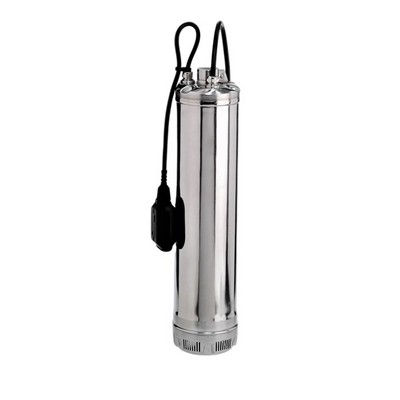

Franklin ES5/5 0.9kW 230/1/50Hz 5" submersible pump c/w float switch (4SC9)

STOCK CODE: FRAES05-05F
The E-TECH ES Series of 5" close-coupled submersible stainless steel pumps are manufactured by Franklin Electric. All wetted components of the pumps are manufactured from 304 stainless steel, unique in this market. The pumps are available in 230 volt 50 Hz single phase with internal start capacitors and integrated thermic motor protection meaning they do not require a control panel, and also 400v 3-phase on request. They are supplied equipped with a plug-in type level control (rollerball floatswitch) for automatic operation (230v volt only) and 20 metres of power cable. Motor cooling is guaranteed by the pumped liquid passing between the outer casing and the encapsulated motor.
  • Capacities: up to 7,5 m³/h at 50Hz / 9 m³/h at 60Hz
  • Heads: up to 88 m at 50Hz / 80,5 m at 60Hz
  • Discharge outlet 1¼” Rp
  • Maximum immersion depth: 20 m
  • Maximum allowable amount of sand 50 gr/m³
  • Maximum solids size up to 2 mm
  • Liquid temperature range -5° C to 40° C
  • Continuous operation either in vertical or horizontal position
  • 20 m of power cable type H07RN F is supplied with the standard version
  • Easy installation: the single-phase version have internal capacitor and thermic motor-protection thus is not necessary to connect the electric pump to a control panel
  • Compact close-coupled design, robust and corrosion resistant
  • Plug-in type power cable and level control (floatswitch) for easy replacement
  • Motor cooling is guaranteed by the pumped liquid
  • Continuous operation either in vertical or horizontal position
  • Heavy duty over size motor shaft
  • Stainless steel water proof capsule to protect the motor
  • Double mechanical seal separated by an oil chamber for maximum motor protection
  • 230v single phase option without floatswitch available on request
  • 3 x 230 and 3 x 400 volt three phase options available on request (no floatswitch)
