Home Pumps & Aerators Pump Controls Variable Speed Controls Grundfos Constant Pressure Set Kit For SQE borehole pumps
Picture of Grundfos Constant Pressure Set Kit For SQE borehole pumps
Picture of Grundfos Constant Pressure Set Kit For SQE borehole pumps

Grundfos Constant Pressure Set Kit For SQE borehole pumps

STOCK CODE: GFOSCPS Supplier SKU: 96524504
Grundfos Constant Pressure Set (CPS) Kit is designed to work with Grundfos SQE borehole pumps to create a pressurized water system. The 'all in one box' solution is easy to install and operate. This system is one complete solution without the need of additional controls or wiring and virtually maintenance free. With the use of the Grundfos CU301 controller; the intelligent control unit monitors the system's performance continuously, if necessary system can be adjusted with the touch of a button.

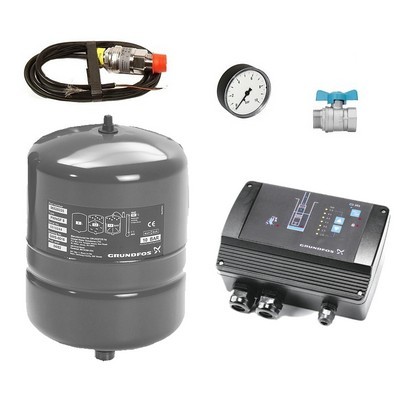

The Grundfos CPS kit includes everything you need to set up a pressurized water system; Grundfos CU301, pressure transducer, pressure vessel, isolation valve and pressure gauge.

The Grundfos CPS kit does not include the Grundfos SQE borehole pump or cable; these will need to be specified separately.
No products found
Electrical data:
  • Mains frequency: 50 / 60 Hz
  • Rated voltage: 1 x 100-240 V
The constant-pressure package without pump contains the following components:
  • CU 301
  • Pressure unit on the front cover in bar
  • Diaphragm tank, 8 litres
  • Ball valve
  • Sensor kit, PT 0-6 bar
  • Pressure gauge, 10 bar, ø63mm
  • Cable clips, 20 pcs

The CU 301 control unit has been developed for the SQE submersible pumps.

The CU 301 enables:
  • constant-pressure control on the basis of one sensor signal,
  • setting of system pressure and
  • monitoring of operation and alarm indication.
The CU 301 communicates with the pump via the pump cable which means that there is no need for extra cabling between the CU 301 and the pump.
