Home Pumps & Aerators Pump Controls Pressure Controls & Switches Grundfos Pressure Manager. Cut in 1.5 Bar Cut out at 0 flow. Max 6 amp motor

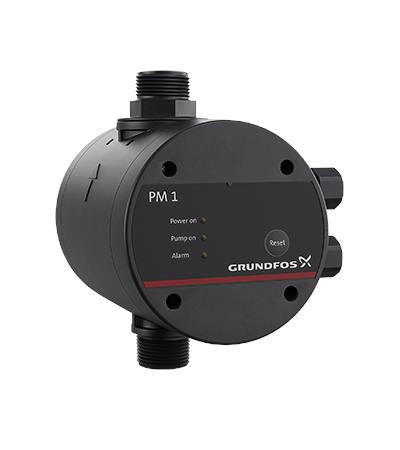

Picture of Grundfos Pressure Manager. Cut in 1.5 Bar Cut out at 0 flow. Max 6 amp motor
Picture of Grundfos Pressure Manager. Cut in 1.5 Bar Cut out at 0 flow. Max 6 amp motor
Picture of Grundfos Pressure Manager. Cut in 1.5 Bar Cut out at 0 flow. Max 6 amp motor
Picture of Grundfos Pressure Manager. Cut in 1.5 Bar Cut out at 0 flow. Max 6 amp motor

Grundfos Pressure Manager. Cut in 1.5 Bar Cut out at 0 flow. Max 6 amp motor

STOCK CODE: GFOSPM1-15 Supplier SKU: 96848670
The Grundfos PM1 and PM2 pressure managers are designed to automatically start/stop water supply pumps. This fully automatic pressurisation device incorporating an electronic pressure switch, dry run protection, cycling alarm and non return valve.

This unit also replaces the need for a traditional pressure switch, vessel, dry run protection and non return valve all installed on a manifold. The unit can be fitted to any pump with a min outlet pressure of 1.5 Bar and up to a maximum of 10 Bar. Max flow rate is 10 m³/h.

The unit will turn on the power to run the pump the moment there is a flow demand. The unit requires a 230 volt single phase electric supply. 1" BSPM bottom inlet and 1" BSPM top outlet.

Two models available, PM-1 version up to 6 amp with fixed start pressure of 1.5 Bar and 2.2 Bar and PM-2 version up to 10 amp with adjustable start pressure from 1.5 to 5 Bar.
