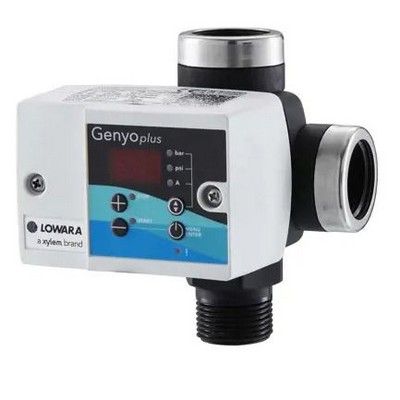

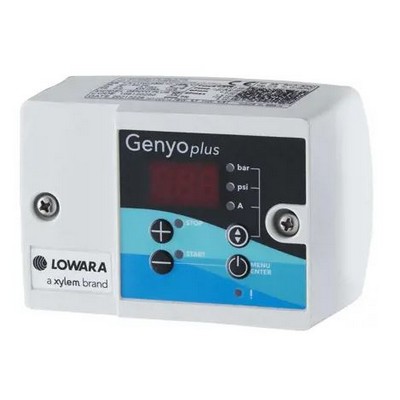

The Lowara Genyo PLUS is an electronic pressure switch with an integrated digital pressure gauge and complete pump protection set. It can manage the start and stop of single-phase electric pumps up to 3 HP (2.2 kW).
Three operating modes (differential, reverse and synchronized) provide extreme versatility.
Cut-in and cut-out pressure set points can be easily and accurately set through a user-friendly interface.
The Lowara Genyo plus includes instantaneous current reading as well as overcurrent, dry-running and fast cycling protection.
The Lowara Genyo plus is WRAS certified for drinking water use, and can work in parallel with another unit to control two-pump booster sets.
Genyo Tkit is the latest Xylem digital pressure switch offering.
Genyo plus is pre-assembled on a 3-ways fitting including an integrated non return valve and can help to add an optimized pressure vessel vertically or horizontally.
Genyo plus, optimized with a pressure vessel, can significantly extend pump's lifetime while providing additional energy savings.

Applications
Drinking water supply - Genyo plus can be applied to any 2-pump booster set managing the cyclic exchange between the two pumps and balancing operating times.
Gardening - Genyo plus can be combined to any surface pump (up to 2,2kW single phase) to provide a gardening irrigation system with the appropriate pressure.
Groundwater supply - Genyo plus is the ideal solution, combined with a submersible pump, to provide the right pressure to groundwater, supplying toilets, washing machines and other appliances.
