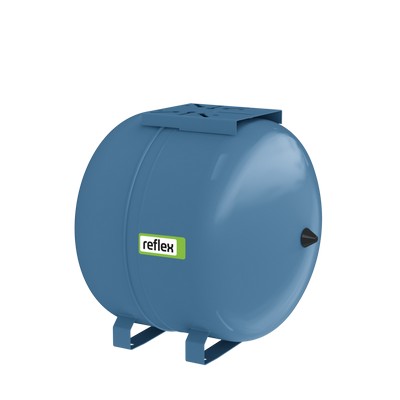

Reflex Winkelmann Refix HW pressure vessels come in a range of sizes from 25 litres to 100 litres and are 10 bar rated. They are horizontal for use with pressurized water systems.

The vessels incorporate a butyl diaphragm mounted within a blue epoxy coated mild steel shell. Construction eliminates any contact between stored water and the steel shell of the vessel and therefore are suitable for use with potable water systems and are WRAS approved. All vessels are factory tested and certified according to Pressure Equipment Directive 2014/68/EC

Maximum pressure rating of this horizontal range is 10 bar with a temperature range of -10 to 70°C. Supplied in blue with stainless steel flanges. Pre-charged to 4 bar.
