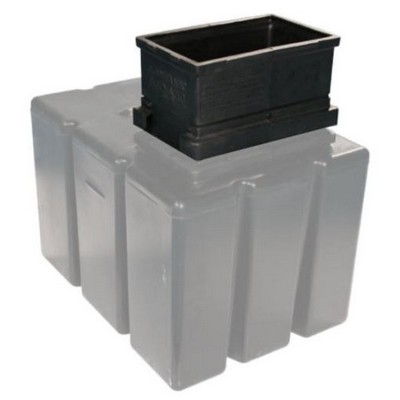

Poly Tank A30 air gap with extended valve arm. Type AB. 337x245x230mm

STOCK CODE: POLYTANKXPA30 Supplier SKU: XPA30

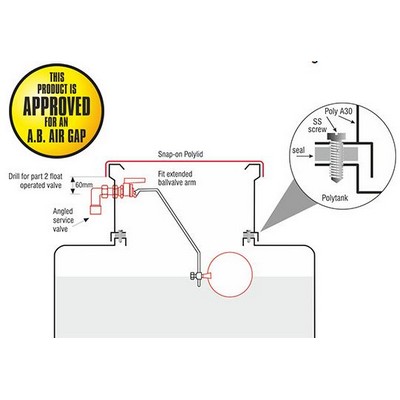

Polytank PolyA30 is designed to give two levels of protection to stored water systems:

A1 - Type "AB" Air Gap with weir overflow to protect the incoming mains water supply for a Category 5 designated risk of contamination
A2 - Drinking water supply to the water stored in the system. Providing no additives are added into the cistern and no contamnation is caused by any process downstream

Protection A2 noted above CANNOT be maintained if any type of pump is installed downstream of the cistern or if any equipment which may cause backflow is installed downstream.
Protection A2 noted above CAN ONLT be mainteained if the system is a gravity fed system.

The "A"Type Air Gap protection remains valid even if conditions for protection A2 noted above cannot be made.

182 litre Framed Tank with ball valve & bylaw kit 590mm x 590mm x 711mm

STOCK CODE: POLYTANK232328-182 Supplier SKU: 23-23-28

227 litre Framed Tank with ball valve & bylaw kit 590mm x 590mm x 893mm

STOCK CODE: POLYTANK232335 Supplier SKU: 23-23-35

Polytank A30 is designed to accommodate a maximum flow rate of 62 litres/minute (i.e. BS1212 part 2 float operated valve with a No. 9 - 9.5mm (3/8" bore seat)
A maximum float size of 178mm (7") can be accommodated.

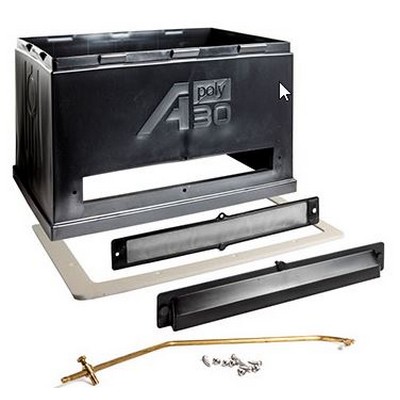

Package contents:
  • POLYTANK PolyA30 chamber with weir
  • PolyA30 seal
  • 10 SS screws
  • J4 insulation
  • Extended arm
