Home Irrigation Control Rain Bird Valves PEB & PESB Series Rain Bird GSV 100-PESBIC 1" BSP with ICM, PRS-Dial, and extra purple handle
Picture of Rain Bird GSV 100-PESBIC 1" BSP with ICM, PRS-Dial, and extra purple handle
Picture of Rain Bird GSV 100-PESBIC 1" BSP with ICM, PRS-Dial, and extra purple handle

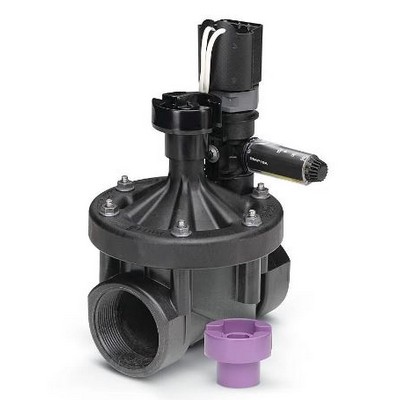

Rain Bird GSV 100-PESBIC 1" BSP with ICM, PRS-Dial, and extra purple handle

STOCK CODE: RB100-PESBIC Supplier SKU: GSVIC101
The Rain Bird PEB and PESB series of valves are the most robust durable valve available. The are designed for use on sports, golf and other high specification irrigation systems.

The valves are constructed from glass filled nylon for long life, Stainless steel stubs are pre-moulded in the valve body to resist damage. There is a self flushing nylon screen and PESB models have a patented scrubber device to ensure reliable operation.

The one piece solenoid with captured plunger and spring for easy servicing. A flow control handle allows adjustment of water flow as required; and a manual bleed screw to release any air locks.

The Rain Bird PEB/PESB valves can also be fitted with a Pressure Regulating Stem (PRS) Dial; this allows the outlet pressure from the valve to be controlled.

Also available in GSV format for Golf applications. These models have either a GBS25 heavy duty 24VAC solenoid coil or an ICM Smart Solenoid fitted which adds surge protection. They are also fitted as standard with the PRS-Dial Pressure Regulator and are scrubber valves.
Picture of Rain Bird 100-PEB 1" BSP female 24VAC solenoid valve

Rain Bird 100-PEB 1" BSP female 24VAC solenoid valve

STOCK CODE: RB100-PEB Supplier SKU: B34073

Picture of Rain Bird 100-PESB 1" BSP female 24VAC scrubber solenoid valve

Rain Bird 100-PESB 1" BSP female 24VAC scrubber solenoid valve

STOCK CODE: RB100-PESB Supplier SKU: B37073

Picture of Rain Bird GSV 100-PESBG 1" BSP with GBS25, PRS-Dial, and extra purple handle

Rain Bird GSV 100-PESBG 1" BSP with GBS25, PRS-Dial, and extra purple handle

STOCK CODE: RB100-PESBG Supplier SKU: GSV101

  • 25kV surge protection with the GBS25 Solenoid and 20kV surge protection with ICM.
  • Built-in filtration with the GBS25 Solenoid for a second level of protection from debris.
  • A pre-installed PRS-DIAL regulates outlet pressure in the field for better distribution uniformity.
  • Improved pressure spike reduction capabilities reduce water hammer.
  • Adjustment knob with an indicator allows fine-tuning in 1/3psi (0.02 bar) increments.
  • All models feature chlorine-resistant diaphragm for applications using reclaimed water and include an extra purple flow control handle/handle cover to designate non-potable water.
  • Scrubber mechanism encapsulates stainless steel screen to dislodge grit and plant material.
  • Waterproof dial cartridge eliminates fogging and binding.
  • Ergonomic design with snap-tight cover on dial cartridge prevents vandalism.
  • 25kV surge protection with the GBS25 Solenoid and 20kV surge protection with ICM.
  • Maintain the constant pressure you need between 15 and 100psi (1.04 to 6.90 bar), regardless of incoming pressure fluctuations.
  • A chlorine-resistant diaphragm delivers increased protection against harsh chemicals.
