Landscape Watering Systems Limited. Rain Bird GBS25 Golf Solenoid Assembly for all VIH Eagles and GSV Valves >2013

Rain Bird GBS25 Golf Solenoid Assembly for all VIH Eagles and GSV Valves >2013

STOCK CODE: RB213462C Supplier SKU: 213462C

The GBS25 solenoid raises the bar on solenoid technology and is a "must have" for any golf course that experiences surges due to lightning or uses non-potable water. The GBS25 is the standard solenoid included on all currently available Rain Bird golf valve-in-head rotor models. It provides superintendents with a solution for two potential service issues often faced by valve-in-head solenoids: resistance to lightning surges and resistance to debris. The GBS25 has the highest surge resistance in the industry and is rated for 25,000 volt surges. It also has a secondary filter that protects the solenoid chamber from debris, keeping the plunger captured and away from contamination.

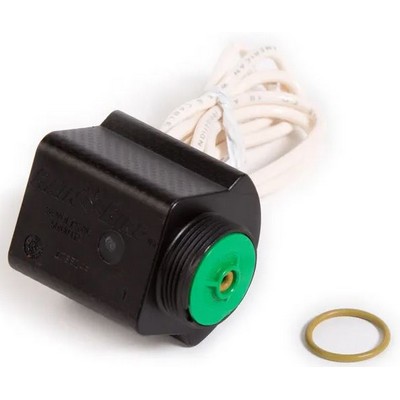

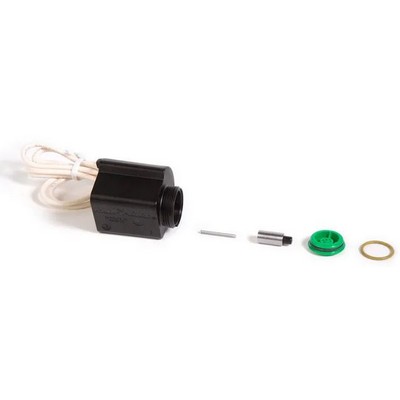

Replacement solenoid assembly for Rain Bird valve-in-head golf rotors and case assemblies, Includes solenoid, filter and o-ring
Compatible with all Rain Bird E-series rotors (EAGLE 500E/550E, EAGLE 700E/750E, EAGLE 900E/950E, EAGLE 1100E/1150E, Rain Bird 700E/751E)
Industry-leading surge resistance of 25kV
Built-in filtration for a 2nd level of debris protection
New ¾” shorter body design that eliminates the need for a thread adapter
Captured plunger and wire capture ports
