Home Irrigation Control Rain Bird Valves PEB & PESB Series Rain Bird 300-BPES 3" BSP female 24VAC BRASS scrubber solenoid valve

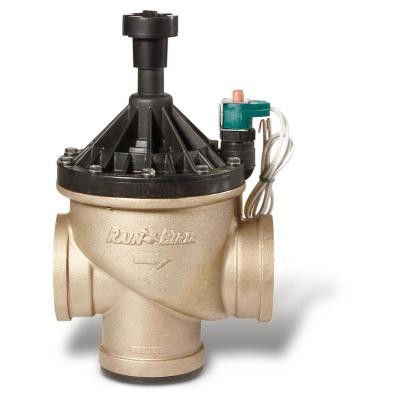

Picture of Rain Bird 300-BPES 3" BSP female 24VAC BRASS scrubber solenoid valve
Picture of Rain Bird 300-BPES 3" BSP female 24VAC BRASS scrubber solenoid valve

Rain Bird 300-BPES 3" BSP female 24VAC BRASS scrubber solenoid valve

STOCK CODE: RB300-BPES Supplier SKU: B38213
  • Unique hybrid construction featuring durable red brass body and glass filled nylon bonnet for long life at a value price
  • Normally closed, forward flow design
  • Slow closing to prevent water hammer and subsequent system damage
  • Robust solenoid provides dependable performance even during constant operation
  • Flow control handle adjusts water flows as needed and incorporates a brass thread insert for longer life
  • Manual internal bleed operates the valve without allowing water into the valve box. Allows pressure regulator adjustment without turning the valve on at the controller
  • Manual external bleed permits flushing debris from the system. Recommended for system start up and repairs
  • Highly efficient operation with extremely low pressure loss
  • Patented nylon scrubber scrapes a stainless steel screen to clean and break down grit and plant material. Prevents debris build-up and clogging
  • Three-year trade warranty
No products found
  • Pressure: 1.4 to 13.8 bar
  • Flow with/without PRS-D option: 13.6 to 68.1 m3/h; 3.78 to 18.90 l/s)
  • Temperature: up to 60° C
  • Power: 24 VAC 50/60 Hz (cycles/sec) solenoid
  • Inrush current: 0.41 A (9.8 VA) at 50/60Hz
  • Holding current: 0.14 A (3.43 VA) at 50/60Hz
