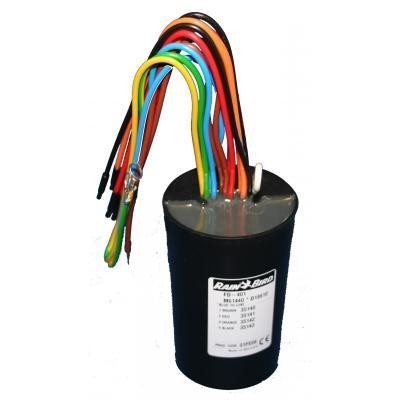

Rain Bird 4 way Field Decoder

STOCK CODE: RBDEC-FD401 Supplier SKU: M61440
Rain Bird decoder technology long-since proven on golf courses around the world, Rain Bird decoders provide "best-in-class" field control on centrally controlled 2-wire irrigation systems. Installed underground and featuring simple, low-cost wiring, decoders are an aesthetically pleasing, full-featured, economical option for reliable in-field control.

A simple wiring configuration and absence of protective enclosures keeps installation and maintenance costs low. Rain Bird decoders are a “true lower than 30 volt” system that utilize a two-wire path of 14-gauge wire connecting the central control system, decoders and valves or valve-in-head sprinklers.

With all electronic components fully sealed within a water‑tight enclosure and buried underground, damage from floods, frost, rodents or vandals is virtually eliminated. Rain Bird decoders are an especially good choice for flood plains.

Rain Bird 1 way Field Decoder

STOCK CODE: RBDEC-FD101 Supplier SKU: M61101

Rain Bird 1 way Field Decoder - operate 2 coils max

STOCK CODE: RBDEC-FD102 Supplier SKU: RBEM61000

Rain Bird 2 way Field Decoder

STOCK CODE: RBDEC-FD202 Supplier SKU: M61400

Rain Bird 6 way Field Decoder

STOCK CODE: RBDEC-FD601 Supplier SKU: M61600

• Installation: in valve box or direct burial.
• Input: 2 blue wires connected to the signal line.
• Output: 2 color cables per address.
• Maximum of 100 meters distance between decoders and solenoids using 1.5 mm wire.
• Power consumption: under 1MA in passive mode or maximum of 18MA per address code in operation.
• Working temperature range: 0° to 50° C.
• Storage temperature range: -20° to 70° C.
• Built-in surge protection for FD-401
• Waterproof resin encapsulated circuitry ensure long and trouble-free life.
• Factory preset address codes.
