Landscape Watering Systems Limited. Rain Bird Maxi-Bird ½" BSPM impact sprinkler c/w #08 nozzle

Rain Bird Maxi-Bird ½" BSPM impact sprinkler c/w #08 nozzle

STOCK CODE: RBMAXIBIRD-2045PJ Supplier SKU: B4600008

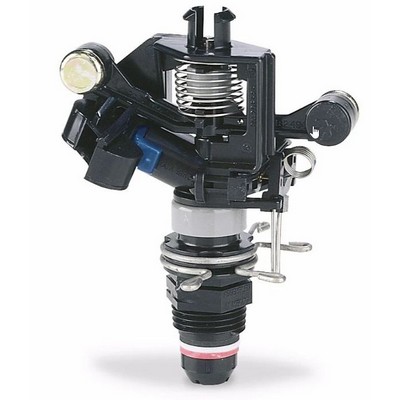

The Rain Bird Maxi-Bird 2045PJ is a durable Delrin plastic, impact driven sprinkler with an adjustable arc of 20-340 degrees. Low pressure and low flow operation. Suitable for ½" BSP riser mounting.
Suitable for a pressure range of 1.7bar(25psi) - 4.1bar(60psi) with a radius of 6.7m - 13.7m depending on nozzle.
Supplied with a standard size 08 nozzle, other nozzle sizes available on request.

1" FC/PC Brass Impact Sprinkler - 6.32 x 3.2mm nozzle with 1" female inlet

STOCK CODE: SPRNAANBRASSPC025

½" Full & Part Circle Brass Impact Sprinkler - 4mm nozzle with ½" male inlet

STOCK CODE: SPRNAANBRASSPC015

¾" FC/PC Brass Impact Sprinkler 4.0 x 2.4mm nozzle with ¾" female inlet

STOCK CODE: SPRNAANBRASSLFC020

Naan ½" plastic Full & Part Circle Impact Sprinkler #2.8 Nozzle

STOCK CODE: NAANIMPACT015

Naan ½" plastic Full & Part Circle Impact Sprinkler #4.0 Nozzle

STOCK CODE: NAANIMPACT015-40

Perrot ZA 22 W FC/PC Impact sprinkler #4.0mm Noz. ½" BSPM inlet

STOCK CODE: PERSPR-ZA22W40 Supplier SKU: RF15811

Perrot ZB 22 W FC/PC Impact sprinkler #4.2mm Noz. ¾" BSPM inlet

STOCK CODE: PERSPR-ZB22W42 Supplier SKU: RF28190

Perrot ZE 30 W FC/PC Impact sprinkler #5.0mm Noz. 1" BSPM inlet

STOCK CODE: PERSPR-ZE30W50 Supplier SKU: RF82524

Perrot ZK 30 W FC/PC Impact sprinkler #8.0mm Noz. 1" BSPM inlet

STOCK CODE: PERSPR-ZK30W80 Supplier SKU: RF16225

Perrot ZM 22 FC Impact sprinkler #10mm Noz. 1½" BSP inlet

STOCK CODE: PERSPR-ZM2210 Supplier SKU: RF28500

Perrot ZM 22 W PC Impact sprinkler #10mm Noz. 1½" BSP inlet

STOCK CODE: PERSPR-ZM22W10 Supplier SKU: RF28547

Perrot ZN 23 W FC/PC Long Range Impact sprinkler #14mm Noz. 2½" BSP inlet

STOCK CODE: PERSPR-ZN23W14 Supplier SKU: RF24491

Perrot ZX 30 FC/PC RED Impact sprinkler #3.2mm Noz. ½" BSPM inlet

STOCK CODE: PERSPR-ZX30WR32 Supplier SKU: RF23701

Rain Bird 25 BPJ ½" BSPM FC/PC brass impact sprinkler. #10 Nozzle.

STOCK CODE: RB25BPJ Supplier SKU: A3440310

Rain Bird 35A ¾" BSPM PC/FC 35A brass impact sprinkler - excludes nozzle

STOCK CODE: RB35A Supplier SKU: A39400

Precipitation Rate: 0.28 to 1.21 inches per hour (7 to 31 mm/h)
Radius: 22 to 45 feet (6,7 to 13,7 m)
Radius with Radius Reduction Screw: 18 feet (5,4 m)
Pressure: 25 to 60 psi (1,7 to 4,1 Bars)
Flow Rate: 1.5 to 8.4 GPM (0,34 to 1,91 m3/h; 0,09 to 0,53 l/s)
Low angle (LA) nozzles: 07 LA-black; 10 LA-yellow
½" (15/21) male threaded inlet
Standard trajectory angle nozzles: 06-red; 07-black; 08-blue; 10-yellow; 12-beige
Nozzle outlet trajectory is 23° for 06, 07, 08, 10, and 12 nozzles
LA nozzle outlet trajectory is 11°

Proven impact drive with straight-through flow for superior performance in dirty water
Double-weighted arm for slower rotation and increased distance of throw
Adjustable arm spring for low-pressure and low-gallonage operation
Precision Jet tube (PJ™) minimizes side splash
5 Matched Precipitation Rate (MPR) nozzles and 2 low-angle (LA) nozzles
Interchangeable, color-coded bayonet mount nozzles
No tools required to change nozzles
FP trip permits full circle (360°) or part-circle operation (20° to 340°)
Powerful reverse action
Three-year trade warranty

Data Sheet
