Landscape Watering Systems Limited. Rain Bird FS Series Flow Sensor with 1½" BSPF PVC Tee. 1.1

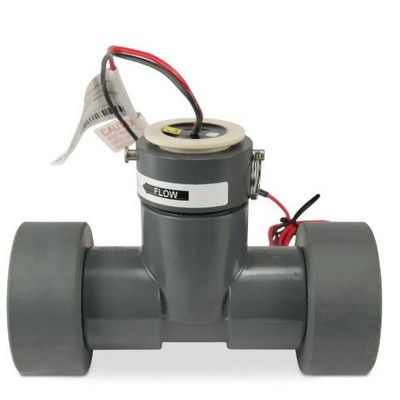

Rain Bird FS Series Flow Sensor with 1½" BSPF PVC Tee. 1.1 - 22.7m³/hr

STOCK CODE: RBSENS-FLOW040 Supplier SKU: M80115

Compatible with IQ3, IQ4, Maxicom, SiteControl, LINK, Site SAT, ESP- LXD, LXME2 PRO, LXMEF, ESP-ME3 and LX-IVM Controllers
Rain Bird FS Series flow sensors use impellers to sense flow and send flow rate data to central control or stand-alone controller systems for precise and accurate flow monitoring. Rain Bird flow sensors are available with BSP ends.

Rain Bird FG100 Flow Sensor 1" BSP

STOCK CODE: RBSENS-FSFG100 Supplier SKU: A83928

Rain Bird FS Series Flow Sensor with 2" BSP BSPF PVC Tee. 2.3 - 45.4m³/hr

STOCK CODE: RBSENS-FLOW050 Supplier SKU: M80116

Rain Bird FS Series Flow Sensor with DN100 Flanged PVC Tee. 9.1 - 113.6m³/hr

STOCK CODE: RBSENS-FLOW100 Supplier SKU: M80118

Product Specification: Sensors

Accuracy: +- 1% (full scale)
Velocity: 1/2-30 feet (0.15 - 9.2 meters) per second depending on model
Pressure: 400 psi (27.5 bars) (max) on brass models; 100 psi (6.9 bars) (max) on plastic models
Temperature: 220° F (105° C) (max) on brass models; 140° F (60° C) (max) on plastic models

Configuration

For ESP-LXIVM Two-Wire Systems: the Flow Sensor is installed with a Two-Wire Sensor Device (LXIVMSEN)
For ESP-LXD Decoder Systems: the Flow Sensor is installed with a Two-Wire Decoder Sensor Decoder (SD211TURF) (Previously SD210TURF)
For ESP-LXMEF Systems: the Flow Sensor is attached to the FSM-LXME Flow Smart Module
For (Hard Wire) Two-Wire Satellite Systems (Maxicom²® and SiteControl): the Flow Sensor is installed with a Pulse Transmitter and a Rain Bird Pulse Decoder (DECPULLR)
For Link Radio Satellite Systems (Maxicom² and SiteControl): the Flow Sensor is installed with a Pulse Transmitter (no pulse decoder required)
For ESP-SITE Satellite Systems (Maxicom): the Flow Sensor is installed with a Pulse Transmitter (no decoder required)
For SiteControl Decoder Systems: the Flow Sensor is installed with a Two-Wire Decoder Sensor Decoder (SD211TURF) (Previously SD210TURF)
*Surge protection (FSSURGEKIT) is recommended for Maxicom and SiteControl systems – One at the Pulse Transmitter, and if more than 50’ of wire run, one at the Flow Sensor. FSSURGEKIT is not compatible with ESP-LXMEF and ESP-LXD Controllers

Dimensions

FS150P: 5.0" x 5.16" x 2.38" (127mm x 131mm x 60mm)

Product Features: Flow Sensor Features

Simple six-bladed impeller design
Designed for outdoor or underground applications
Available in PVC construction
Pre-installed in tee

Flow Sensors Enable Key LX Series Controller Features

Flo-Watch™. Flo-Watch constantly monitors for low flow and excess flow conditions caused by broken lines or heads, automatically quarantines and shuts down the problem area, and continues to irrigate non-affected areas. Saves water, saves plant material, and enables irrigation programs to continue and complete
Learned Flow. The controller automatically learns station flow rates resulting in more accurate flow rates. The automatic collection prevents you from having to manually enter data from drawings, or physically visiting each valve to collect flow data and manually entering the data into a controller
FloManager®. FloManager determines the optimal station irrigating sequence. The system runs at its fullest capacity until programs are complete. The controller automatically selects and runs multiple valves at the same time within hydraulic parameters, allowing for shorter water windows

Using With Transmitters and Pulse Decoders

Programmable from a computer (PT322 – Maxicom and SiteControl Systems only – not required for ESP-LXMEF or ESP-LXD)
Reliable solid-state design, available with or without LCD display
Operates with MAXILink,™ and (hard-wire) two-wire satellite systems
Easy-to-program, menu-driven design

Data Sheet

Instruction Manual
