Home Drip & Micro Irrigation Rain Bird Drippers Rain Bird Xeri-Bird Multi Outlet Device 8 x outlets and ½" BSPF Inlet.

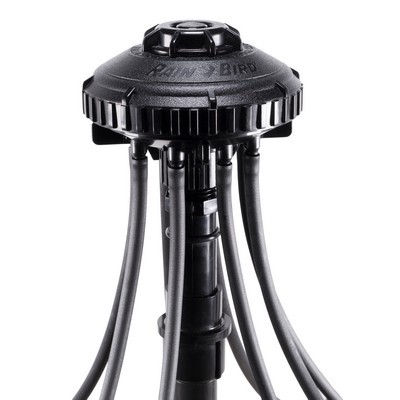

Picture of Rain Bird Xeri-Bird Multi Outlet Device 8 x outlets and ½" BSPF Inlet.
Picture of Rain Bird Xeri-Bird Multi Outlet Device 8 x outlets and ½" BSPF Inlet.

Rain Bird Xeri-Bird Multi Outlet Device 8 x outlets and ½" BSPF Inlet.

STOCK CODE: RBXBD-810 Supplier SKU: X61000
The Rain Bird Dripper outlet manifolds allow for multiple outlets from a single off take. They are ideal for watering groups of pots or planters.

They have unrestricted (free flowing) 6mm/¼" barbed outlets that are designed to be used in conjunctions other low volume irrigation products i.e. drippers or bubblers.
Operating Range
  • Flow: 0.5 to 24 gph (1.89 to 90.84 l/h) per outlet
  • Pressure: 15 to 50 psi (1.0 to 3.5 bar)
  • The only multi-outlet device on the market with 8 configurable ports and 10 flow options for each port for maximum flexibility
  • XBD-80 and XBD-81 models each contain a built-in filter. Makes retro-fitting easy when installed with the optional in-stem pressure regulator (PRS-050 page 163)
  • Easy to maintain, because body can be easily removed from riser
  • Threads onto any 1⁄2" riser and delivers water to multiple locations for increased system flexibility
  • Each port accepts a Xeri-Bug™ Emitter or PC Module for independent flows from 0.5 to 24 gph (1.89 to 90.84 l/h) or use a self-piercing barb connector (SPB-025) for unrestricted flow
  • XBD-80 and XBD-81 models each feature an integral 200 mesh (75 micron) filter which is easily serviceable from the top of the unit
  • Eight bottom-mounted, sure-grip barbed outlets securely retain 1⁄4" Distribution Tubing (XQ)
  • Unique union base nut allows removal of Xeri-Bird 8 body from riser for easy installation and maintenance
  • Emitters must be installed inside the Xeri-Bird to prevent excess back pressure
